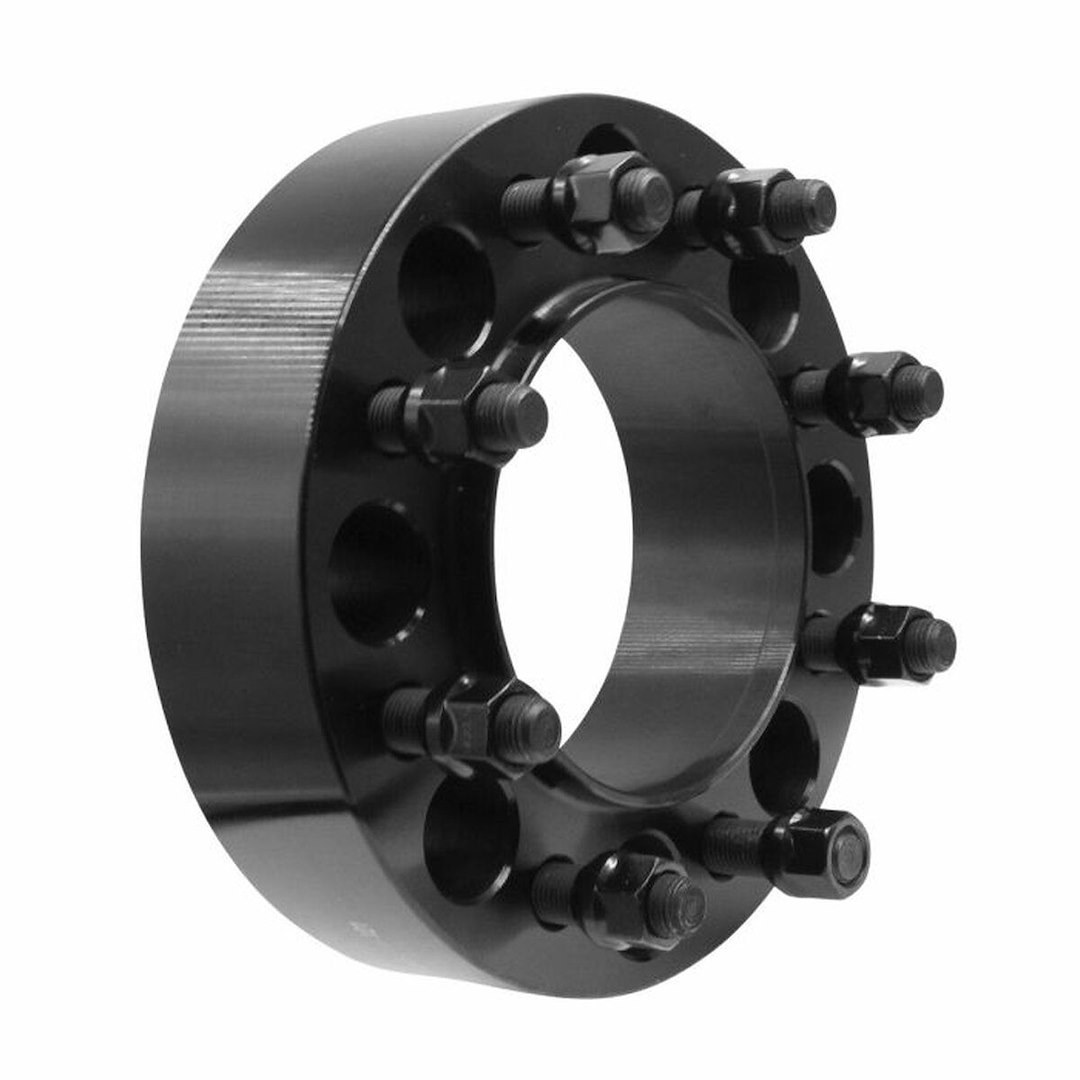

Revolution Gear & Axle Wheel Adapter, 8 X 165.1 Millimeter/ 8 X 6.50 Inch Axle Bolt Circle, Hub Centric – 8650-8650HF-E-121
$87.83
Revolution Gear & Axle Wheel Adapter – 8650-8650HF-E-121
Description

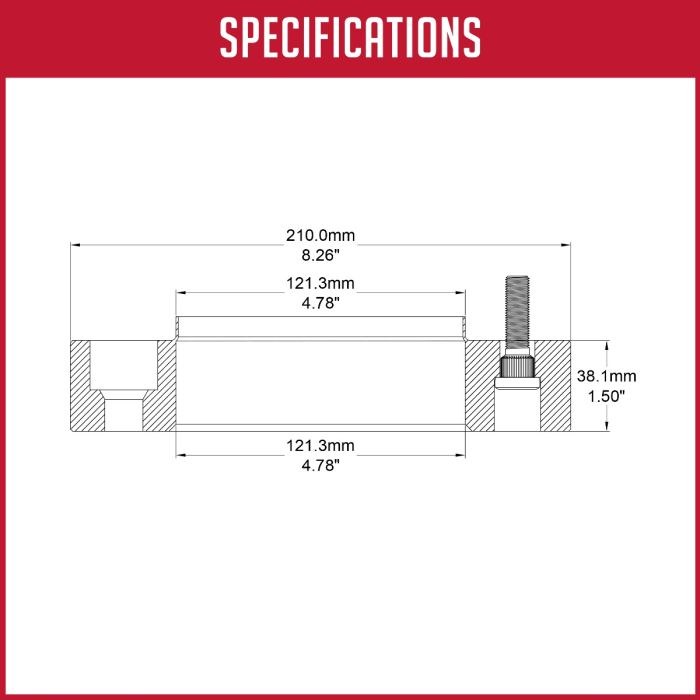

Wheel Adapter; 8 x 165.1 Millimeter/ 8 x 6.50 Inch Axle Bolt Circle; 8 x 165.1 Millimeter/ 8 x 6.50 Inch Wheel Bolt Circle; Hub Centric; 9/16 Inch x 18 Thread Size Studs; 121.30 Millimeter Center Bore; 2 Inch Thick; Anodized Black; Aluminum; With Acorn Bulge Lug Nuts
Attributes:
- Vehicle Bolt Circle (MM): 8×165.1
- Wheel Bolt Circle (MM): 8×165.1
- Stud Size: 9/16×18
- Hub Fitment: Hub Centric
- Center Bore: 121.30 Millimeter
- Hub Size: 121.30 Millimeter Center Bore
- Thickness (IN): 2 Inch
- Number Of Lug Nuts: 8
- Vehicle Bolt Circle (IN): 8×6.50
- Wheel Bolt Circle (IN): 8×6.50
- Finish: Anodized
- Color: Black
- Material: Aluminum
- Lug Nut Seat Type: 60 Degree Conical Bulge
- Lug Nut Design: Acorn
- Quantity: Single
- Estimated Install Time (Hours): 0.5
Features & Benefits:
- Made From Air Craft Quality 6061-T6 Aluminum
- Ensures A Precise Fit To Your Vehicle Hub Eliminating Possible Vibration
- Anodized To Protect From Corrosion
- Grade 10.9 Wheel Studs Constructed From 1045 Carbon Steel

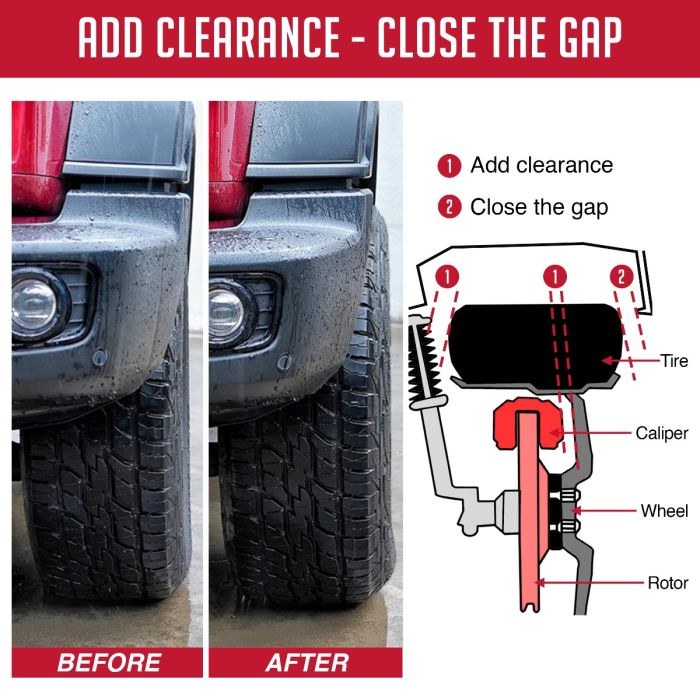

- Increase Tire Clearance, Fix Brake Caliper Clearance Issues
- Heat Treatment Process That Involves Various Solutions And Artificial Aging That Increases The Overall Strength Of The Material
- CNC Lathes And Milling Machines
- Improve Vehicle Handling: By Spacing The Wheels Apart, It Will Provide More Stability To The Vehicle And Corner Better
- Easy Bolt-On Installation: Simply Bolt The Wheel Adapter To Your Hub, Then Bolt Your Wheel To The Adapter
- Limited 1 Year Warranty
About Product:
Widen your vehicle base and give your vehicle a more aggressive stance while improving handling and stability. Increase tire clearance, fix brake caliper clearance issues, allow installation of lift lowering kits and wider, larger, or high traction tires. Our spacer adapter provides a precise fit to your vehicle. Our spacers are made from Forged 6061 T6 Aluminum. Each spacer is treated with a rust resistant black coating which significantly enhances the hardness and corrosion resistance. Studs are SAE 10.9. CNC lathes and milling machines ensures a precise fit to your vehicle.
Additional information
| Weight | 7.41 lbs |
|---|---|
| Dimensions | 8.3 × 8.3 × 3.55 in |
| Brand | REVOLUTION |
| Manufacturer Part Number | 8650-8650HF-E-121 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 932 vehicles.
| Year | Make | Model | Trim | Engine |
|---|---|---|---|---|
| Loading fitment... | ||||
