Skyjacker Lift Kit Suspension, Adx 2.0 Aluminum Body Remote Reservoir, 3 to 3-1/2 Inch Front Lift, 3 to 3-1/2 Inch Rear Lift – C11350KX
$1,265.35
Skyjacker Lift Kit Suspension, Adx 2.0 Aluminum Body Remote Reservoir – C11350KX
Description

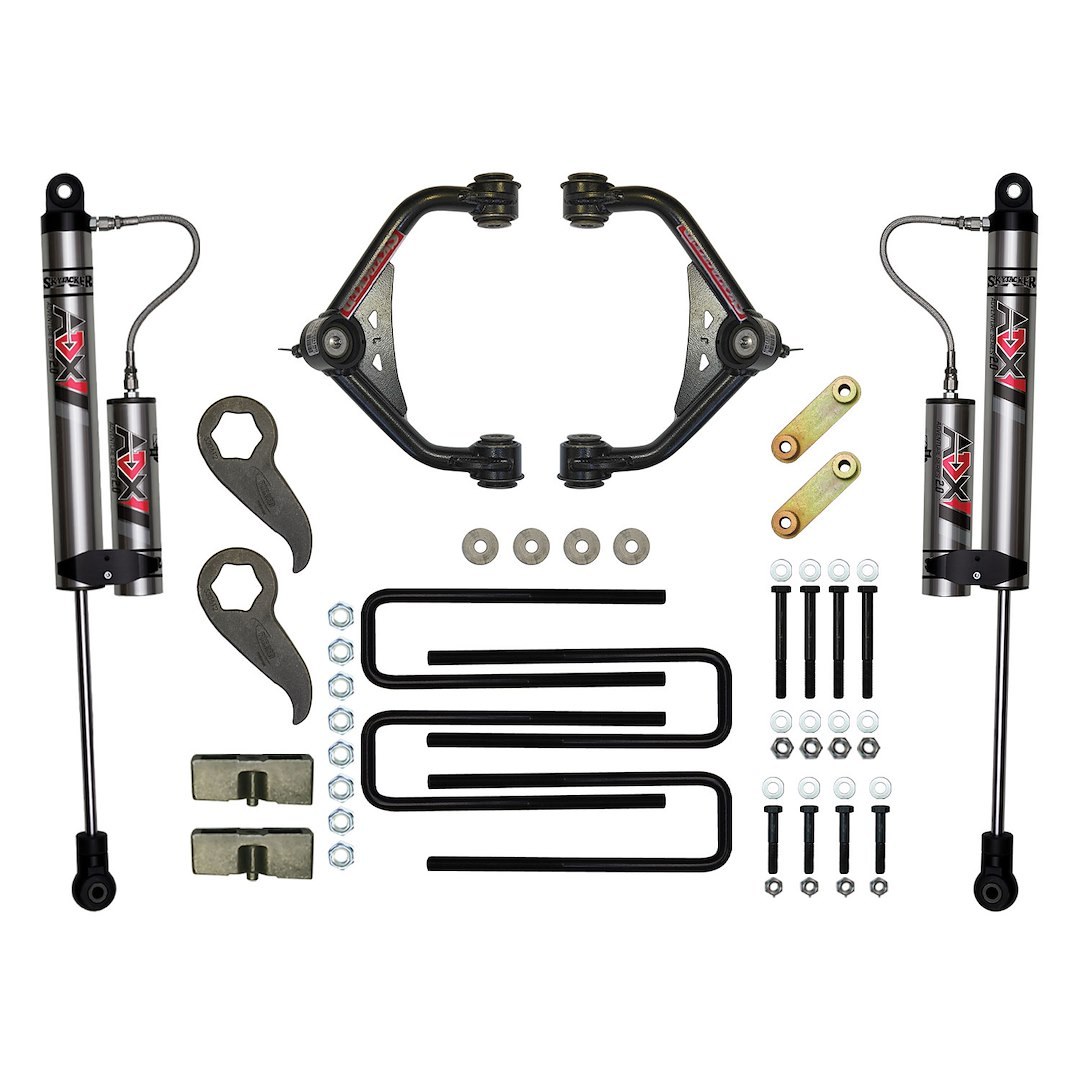

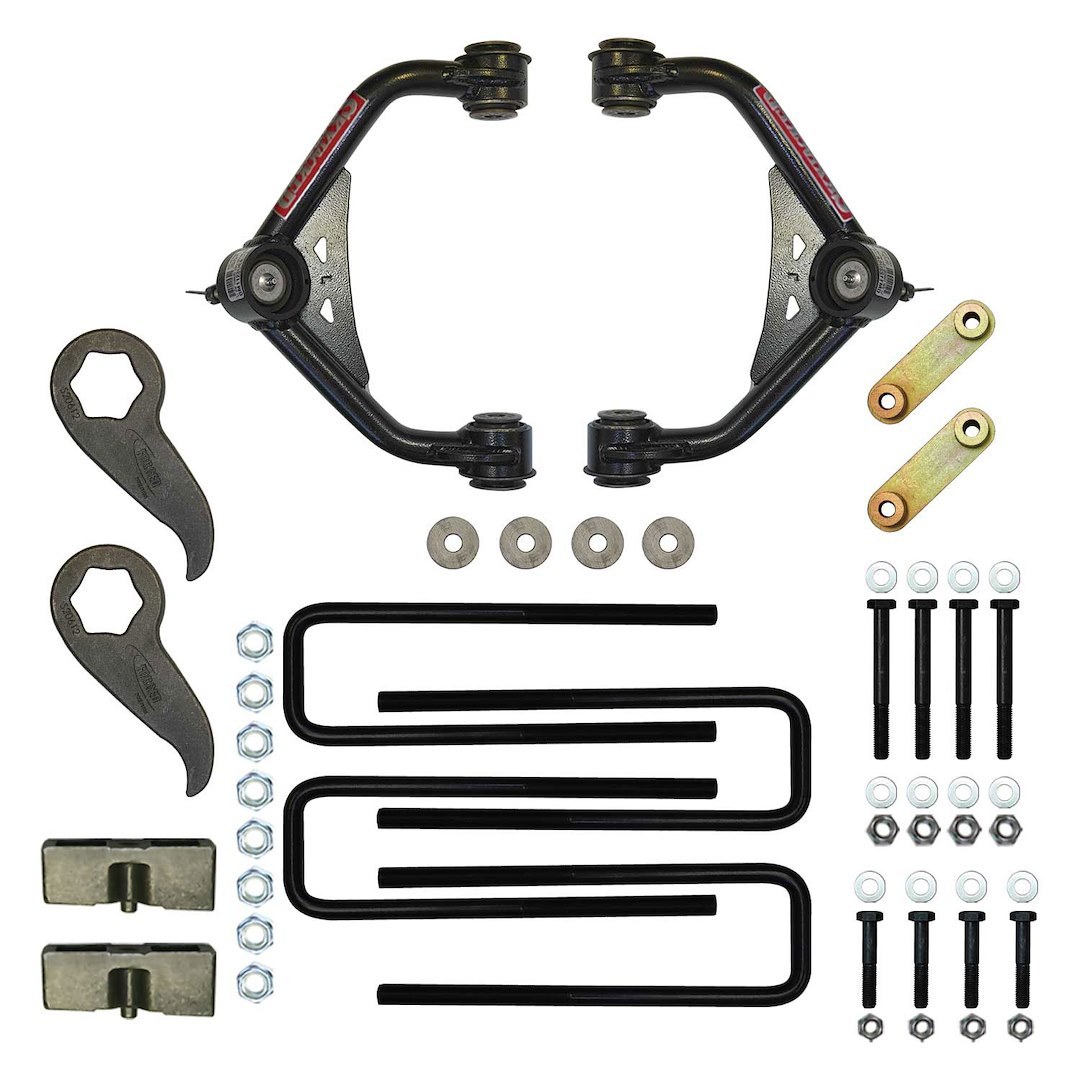

Lift Kit Suspension; ADX 2.0 Aluminum Body Remote Reservoir; 3 To 3-1/2 Inch Front Lift; 3 To 3-1/2 Inch Rear Lift; With Rear ADX 2.0 Remote Reservoir Shock Absorbers; Black Components; With Front Upper Control Arms/ Torsion Bar Keys/ Rear Lift Blocks/ Skid Plate/ Hardware/ Instructions
Attributes:
- Front Lift Amount (IN): 3 To 3-1/2 Inch
- Rear Lift Amount (IN): 3 To 3-1/2 Inch
- Front Lift Type: Upper Control Arms
- Rear Lift Type: Blocks
- Maximum Tire Size: 33 x 12.50
- Shock Type: Gas Charged
- Wheel Backspacing (IN): 5.5
- Minimum Wheel Diameter: 18
- Wheel Offset (MM): 12.7
- Shocks: With Shocks In Kit
- Color: Black
Features & Benefits:
- Skyjacker Fabricated The Replacement Upper Control Arm Out Of High Weld Strength, Thick Walled DOM Steel Tubing To Withstand Extreme Amounts Of Stress And Loads
- For Additional Rigidity And Strength, A Welded Gusset Plate Stiffens The Arm And Bushing Eyelets Into One
- CNC Machined Bushing Eyelets And Ball Joint Cups Ensure Precise Fitment
- Steel Encased OEM Style Rubber Bushings Deliver A Quiet Consistent Controlled Stability And Smooth Riding Comfort
- Greasable Ball Joint’s Full Induction Ball Design, Low Friction Bearing Technology And Other Technical Performance Characteristics Add Longevity And Increased Strength
- Retain Your Front GM OEM Tuned Performance Shocks By Utilizing Top Mounted Front Shock Extension Brackets
- More Than Simple Spacers, These Durable 1-Piece Brackets Add Strength And Integrity To The Design
- Forged Keys Are Stronger Than OEM Torsion Keys And More Durable Than Other Cast Steel Aftermarket Keys

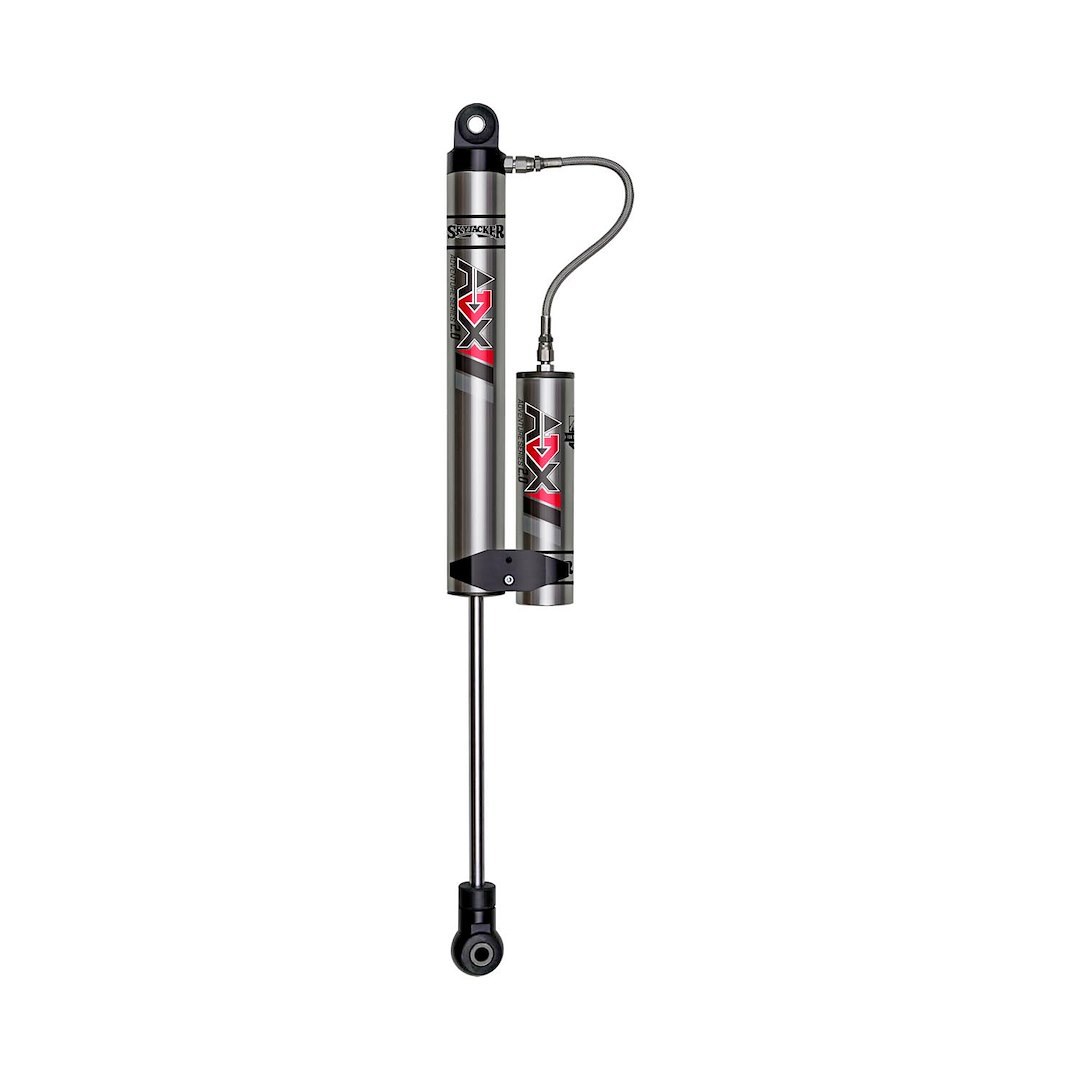

- Skyjacker’s ADX 2.0 Adventure Series Remote Reservoir Aluminum Monotube Rear Shocks Deliver Modern Technology In The Design With An Innovative Off-Road Race-Inspired Full-Displaced Valving System
- Limited Lifetime Warranty
About Product:
Skyjacker’s Replacement Upper Control Arm (UCA) goes beyond just styling and elevates your performance level. Raising the suspension to run 33 Inch tires will add more ground clearance. This system integrates smoothly and functions perfectly allowing the CV axles to operate within limits of new UCA and OEM lower control arms. Aligns to OEM factory specifications. Retain your front GM OEM tuned performance shocks by utilizing top mounted Front Shock Extension Brackets. More than simple spacers, these durable 1-piece brackets add strength and integrity to the design. Replacement forged torsion keys with engineered specific indexing for year split applications are another key feature. Four (4) separate differential spacers securely reposition correct CV and driveshaft angles. A 2 Inch rear Block and U-bolt Kit delivers a more level stance. Complete with high-grade mounting hardware. Shocks are a key link in-between the chassis and the moving parts of your suspension. Skyjacker’s ADX 2.0 Adventure Series Remote Reservoir Aluminum Monotube Rear Shocks deliver modern technology in the design with an innovative off-road race-inspired full-displaced valving system.
Additional information
| Weight | 77.5 lbs |
|---|---|
| Dimensions | 38 × 21.3 × 7 in |
| Brand | SKYJACKER |
| Manufacturer Part Number | C11350KX |
