Wilwood Brake Conversion Kit, D154, Performance Upgrade, For Chrysler 8-3/4 and 9-3/4 and Dana 60/ with 2.5 Offset to Track Width – 140-12208
$1,132.38

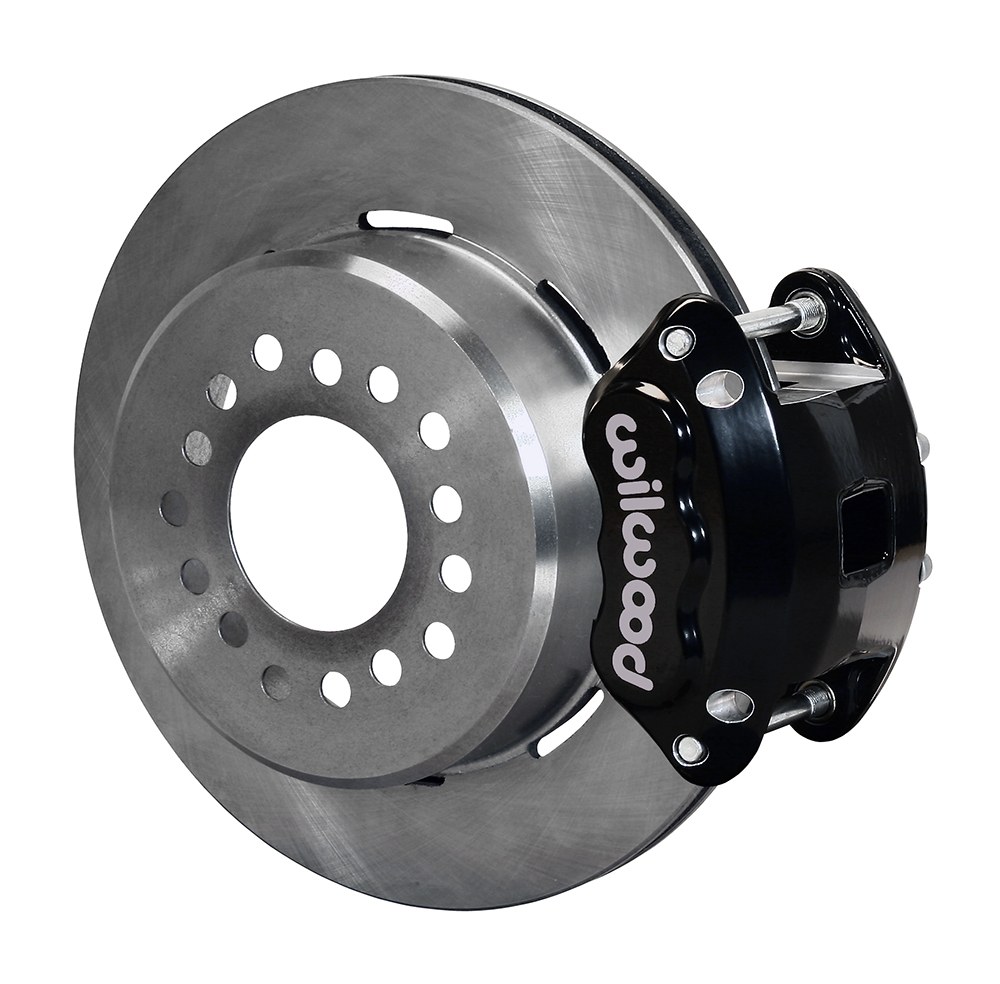

Wilwood Brake Conversion Kit, D154, Performance Upgrade – 140-12208
Description

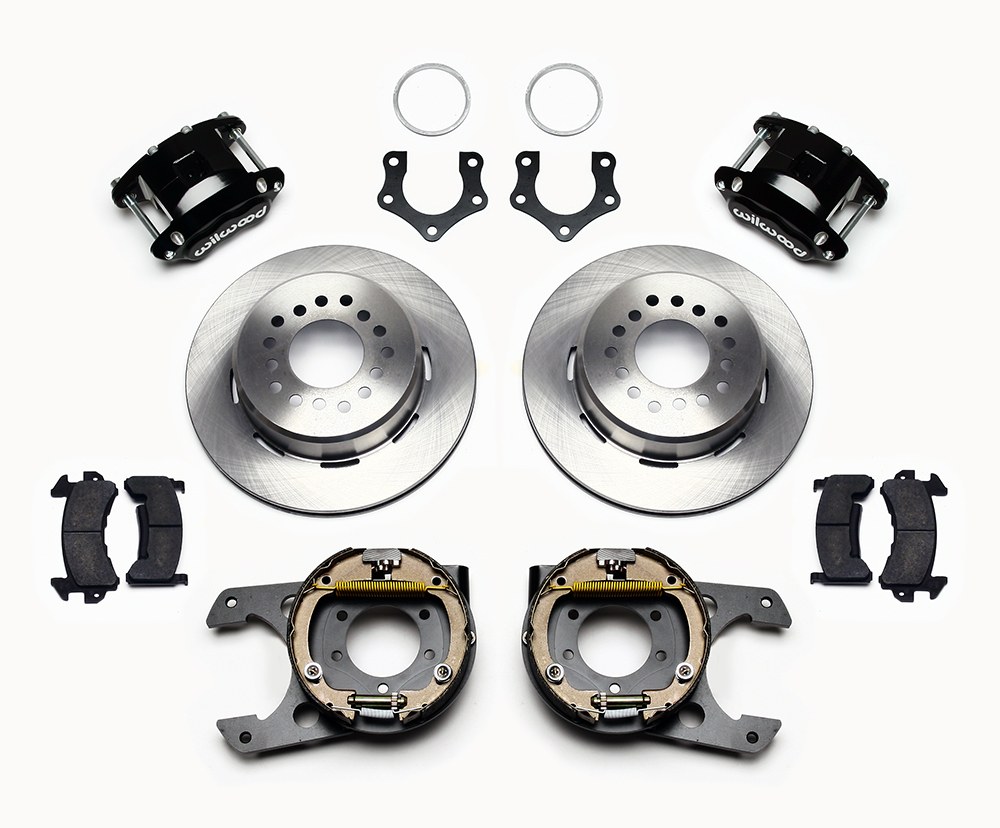

Brake Conversion Kit; D154; Performance Upgrade; For Chrysler 8-3/4 And 9-3/4 And DANA 60/ With 2.5 Offset To Track Width; Ultralite HP 32 Iron 12.19 Inch Diameter Plain Faced Rotor; With BP-10 Metallic Brake Pads; Powder Coated Black 2 Piston Calipers; With Parking Brake Kit/ Caliper Mounting Brackets/ Rotors With 5 x 4.5/ 5 x 4.75/ 5 x 5 Lug Pattern/ Two Calipers/ Pads/ Hardware
Attributes:
- Recommended Use: Performance Street/ Strip

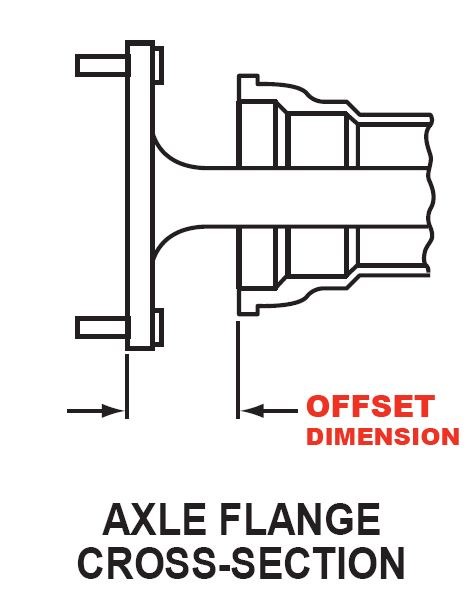

- Compatibility: Chrysler 8-3/4 Inch/ 9-3/4 Inch And DANA 60 Axle With 2.5 Offset To Track Width
- Disc Brake Pad Material: BP-10 Metallic
- Disc Brake Rotor Bolt Circle: 5 X 4-1/2 Inch
- Disc Brake Caliper Color: Black
- Disc Brake Caliper Finish: Powder Coated
- Disc Brake Caliper Material: Aluminum
- Disc Brake Caliper Number of Pistons: 2
- Disc Brake Rotor Design: Plain Face
- Disc Type: 2-Piece
- Disc Brake Pad Overall Length: 126 Millimeter
- Disc Brake Pad Overall Width: 65 Millimeter
- Disc Brake Pad Overall Thickness: 13.2 Millimeter
- Disc Brake Caliper Condition: New
- Disc Brake Rotor Material: Iron
- Disc Brake Rotor Outer Diameter (MM): 309.63 Millimeter
- Disc Brake Rotor Outer Diameter (IN): 12.19 Inch
- Nominal Thickness (MM): 20.57 Millimeter
- Nominal Thickness (IN): 0.81 Inch
- Includes Bracket: Yes
- Includes Hardware: Yes
- Includes Shims: No
- Includes Brake Lines: No
- Minimum Wheel Diameter: 16 Inch
Features & Benefits:
- Provides A Complete Solution For Popular Muscle Car Rear Axles That Require A Parking Brake
- Provides Optimized And Balanced Braking For All Types Of Custom Performance Street/Strip And Show Machines
- Neatly Hidden Internal Shoe System Provides A Clean Installation With Superior Static Holding Power For Parking
- Easy To Install
- No Supplier Warranty
About Product:
D154 Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged D154 dual piston calipers, 12.19 Inch one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. D154 rear caliper kits offer a complimentary match to vehicles using Wilwood D52 or D154 calipers on OE spindles. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance.
Additional information
| Weight | 59 lbs |
|---|---|
| Dimensions | 16.62 × 13.88 × 13.88 in |
| Brand | WILWOOD |
| Manufacturer Part Number | 140-12208 |
