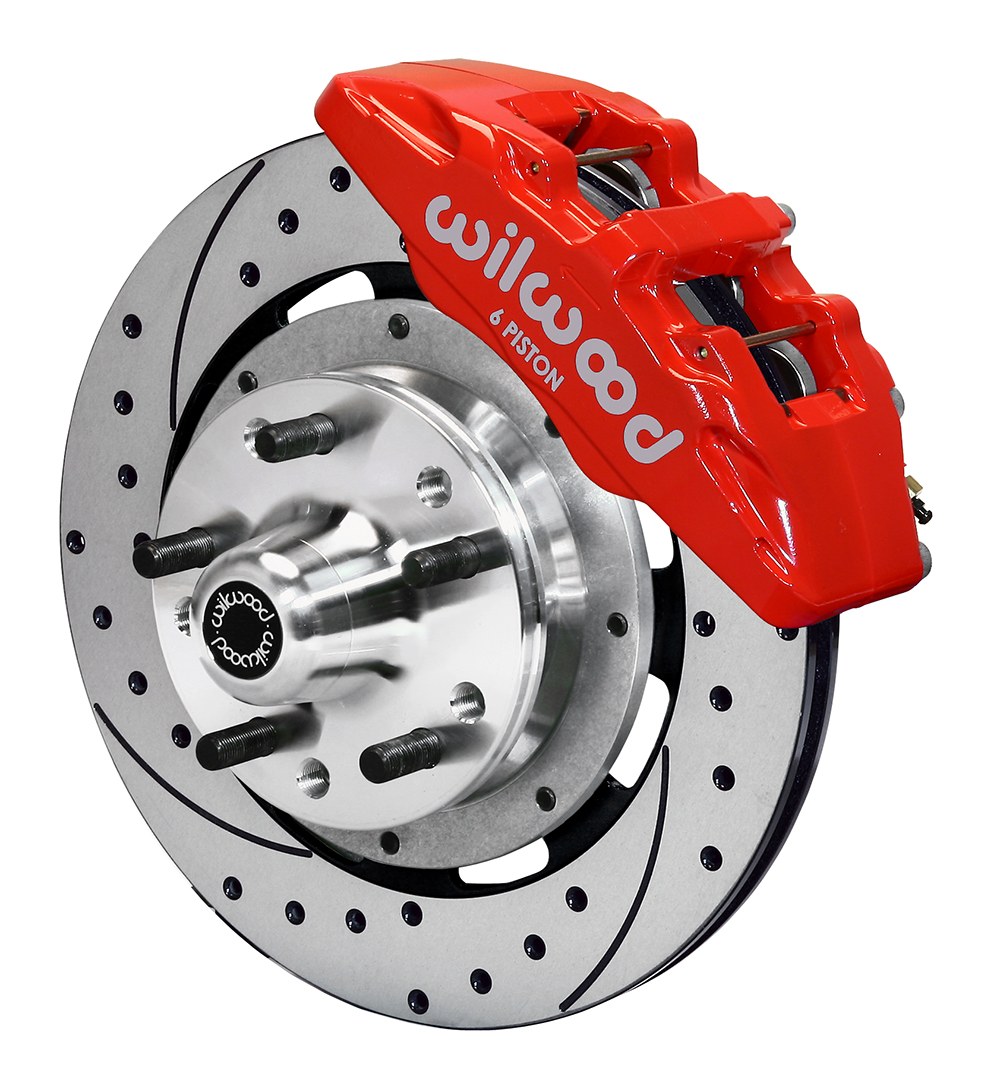

Wilwood Brake Conversion Kit, Dynapro 6 Big Brake, Performance Upgrade, + 0.18 Offset to Track Width – 140-10510-DR
$1,650.39
Wilwood Brake Conversion Kit, Dynapro 6 Big Brake – 140-10510-DR
Description

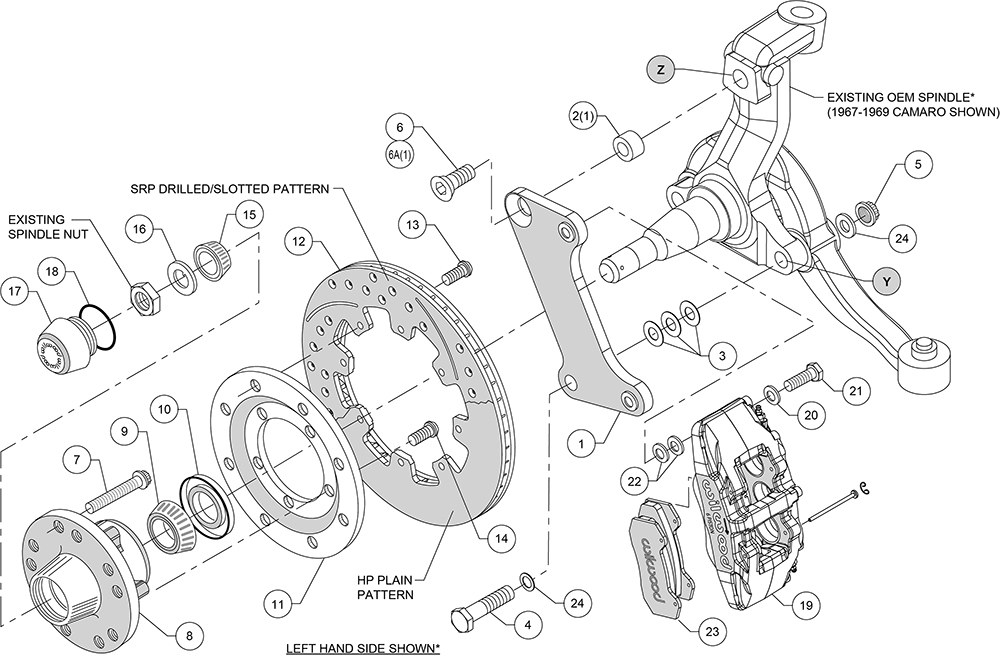

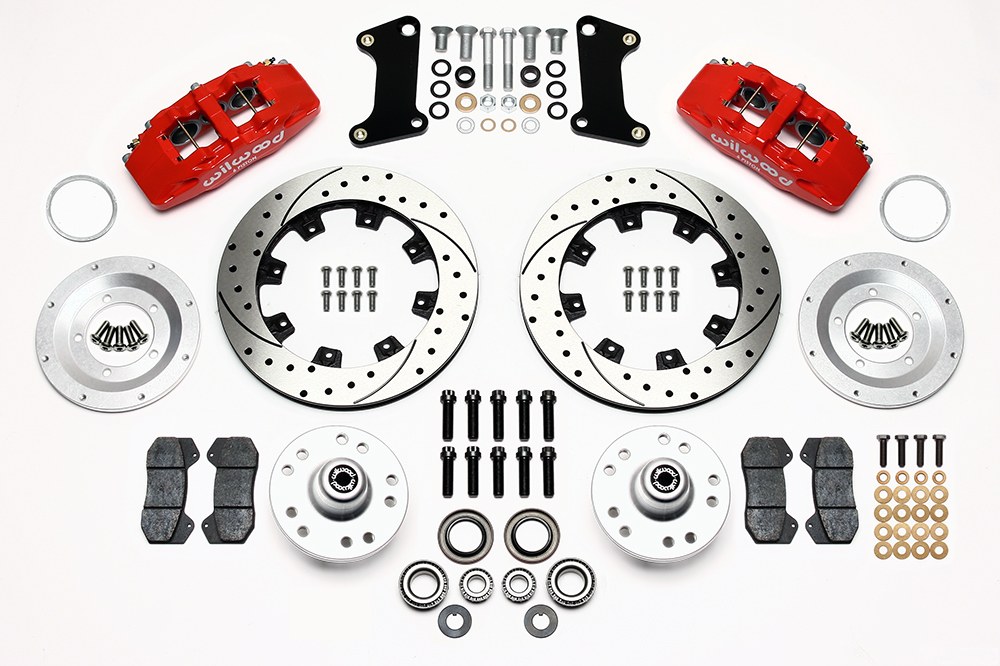

Brake Conversion Kit; Dynapro 6 Big Brake; Performance Upgrade; + 0.18 Offset To Track Width; Black Electro Coated 12.19 Inch Diameter Drilled And Slotted Rotor; With BP-10 Metallic Brake Pads; Powder Coated Red 6 Piston Calipers; With Caliper Mounting Brackets/ Rotor Hats/ Hubs With 5 x 4.50/ 5 x 4.75 Bolt Pattern/ Rotors/ Two Calipers/ Pads/ Studs/ Bearings/ Seals/ Hardware; Wilwood Brake Lines Needed to Complete Installation
Attributes:
- Recommended Use: Racing/ Street
- Disc Brake Pad Material: BP-10 Metallic
- Disc Brake Rotor Bolt Circle: 5 X 4-1/2 Inch
- Disc Brake Caliper Color: Red
- Disc Brake Caliper Finish: Powder Coated
- Disc Brake Caliper Material: Aluminum
- Disc Brake Caliper Number of Pistons: 6
- Disc Brake Rotor Design: Drilled And Slotted
- Disc Type: 2-Piece
- Disc Brake Pad Overall Length: 123.4 Millimeter
- Disc Brake Pad Overall Width: 59.9 Millimeter
- Disc Brake Pad Overall Thickness: 12.4 Millimeter
- Disc Brake Caliper Condition: New
- Disc Brake Rotor Finish: Electro Coated
- Disc Brake Rotor Material: Iron
- Disc Brake Rotor Outer Diameter (MM): 309.63 Millimeter
- Disc Brake Rotor Outer Diameter (IN): 12.19 Inch
- Nominal Thickness (MM): 20.57 Millimeter
- Nominal Thickness (IN): 0.81 Inch
- Includes Bracket: Yes
- Includes Hardware: Yes
- Includes Shims: Yes
- Includes Brake Lines: No

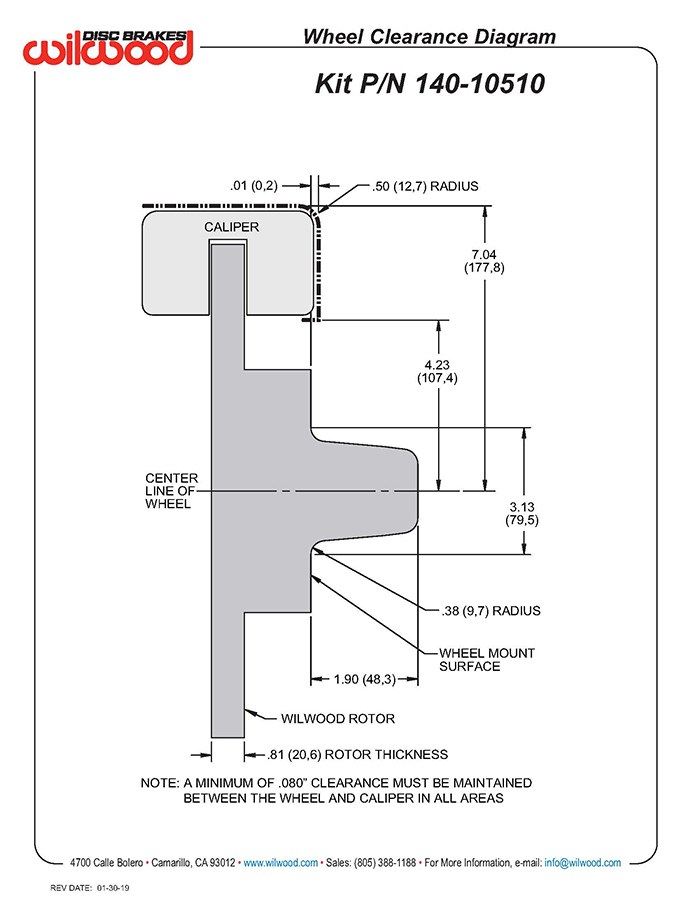

- Minimum Wheel Diameter: 15 Inch
Features & Benefits:
- Combined With 12.19 Inch Diameter Rotors For This Group Of Traditional Non-ABS Spindles On American Muscle Cars And Vintage Rods
- Enhanced Brake Capacity And Pad Performance Of The Six Piston Calipers Provide An Intermediate Level Alternative To The Bigger Six Piston Kits
- A Full Range Of Caliper Finishes And Rotor Designs Enable The Builder To Personalize The Style And Optimize The Brake Performance For Each Individual Application
- Made In USA
- No Supplier Warranty
About Product:
DynaPro 6 forged billet calipers are combined with 12.19 Inch diameter rotors for this group of traditional non-ABS spindles on American muscle cars and vintage rods. The enhanced brake capacity and pad performance of the six piston calipers provide an intermediate level alternative to the bigger six piston kits. These kits compliment wheel, tire, and suspension upgrades on all types of custom show and high performance street / strip machines. A full range of caliper finishes and rotor designs enable the builder to personalize the style and optimize the brake performance for each individual application.
Additional information
| Weight | 48 lbs |
|---|---|
| Dimensions | 14.87 × 13.08 × 13.08 in |
| Brand | WILWOOD |
| Manufacturer Part Number | 140-10510-DR |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 1,754 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
