Wilwood Brake Conversion Kit, Dynapro Low Profile, Performance Upgrade – 140-11387-D
$1,374.59
Wilwood Brake Conversion Kit, Dynapro Low Profile – 140-11387-D
Description

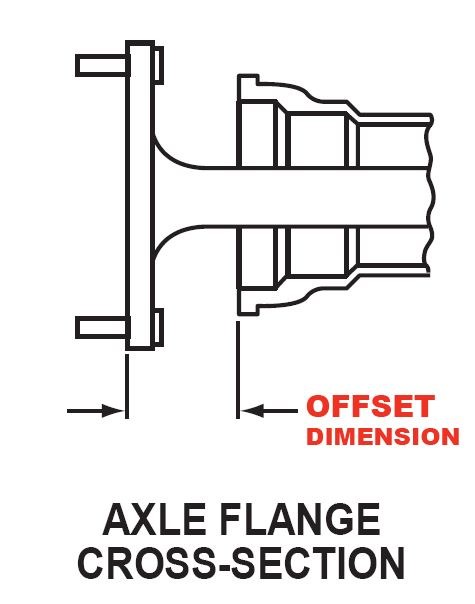

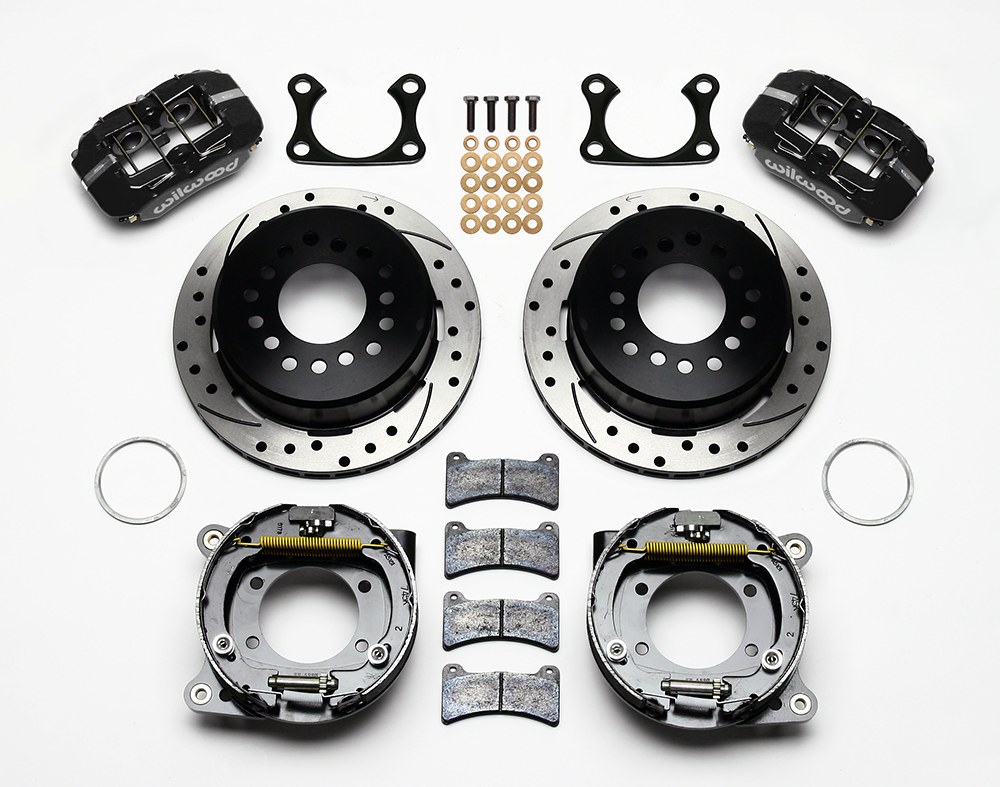

Brake Conversion Kit; Dynapro Low Profile; Performance Upgrade; For Use With Big Ford 3.150 Inch Axle Tub Flange With 2.36 Axle Offset; Black Electro Coated 11 Inch Diameter Drilled And Slotted Rotor; With BP-10 Metallic Brake Pads; Black Anodized 4 Piston Calipers; With Parking Brake Kit/ Caliper Mounting Brackets/ Rotors With 5 x 4.5/ 5 x 4.75/ 5 x 5 Lug Pattern/ Two Calipers/ Pads/ Hardware
Attributes:
- Recommended Use: Performance Street/ Strip
- Compatibility: Big Ford 3.15 Inch Axle Tub Flange With 2.36 Axle Offset
- Disc Brake Pad Material: BP-10 Metallic
- Disc Brake Rotor Bolt Circle: 5 X 4-1/2 Inch
- Disc Brake Caliper Color: Black
- Disc Brake Caliper Finish: Powder Coated
- Disc Brake Caliper Material: Aluminum
- Disc Brake Caliper Number of Pistons: 4
- Disc Brake Rotor Design: Drilled And Slotted
- Disc Type: 2-Piece
- Disc Brake Pad Overall Length: 100.6 Millimeter
- Disc Brake Pad Overall Width: 60.5 Millimeter
- Disc Brake Pad Overall Thickness: 12.4 Millimeter
- Disc Brake Caliper Condition: New
- Disc Brake Rotor Finish: Electro Coated
- Disc Brake Rotor Material: Iron
- Disc Brake Rotor Outer Diameter (MM): 279.4 Millimeter
- Disc Brake Rotor Outer Diameter (IN): 11 Inch
- Nominal Thickness (MM): 20.57 Millimeter
- Nominal Thickness (IN): 0.81 Inch
- Includes Bracket: Yes
- Includes Hardware: Yes
- Includes Shims: Yes
- Includes Brake Lines: No
- Minimum Wheel Diameter: 14 Inch
Features & Benefits:
- Provide A Complete Solution For Popular Muscle Car Rear Axles On Applications That Require A Parking Brake Assembly
- Provide Optimized And Balanced Braking For All Types Of Custom Performance Street/Strip And Show Machines
- The Neatly Hidden Internal Shoe System Provides A Clean Installation With Superior Static Holding Power For Parking
- Easy To Install
- No Supplier Warranty
About Product:
Forged Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 14 Inch to 15 Inch rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11 Inch one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.
Additional information
| Weight | 44 lbs |
|---|---|
| Dimensions | 16.62 × 13.88 × 13.88 in |
| Brand | WILWOOD |
| Manufacturer Part Number | 140-11387-D |
