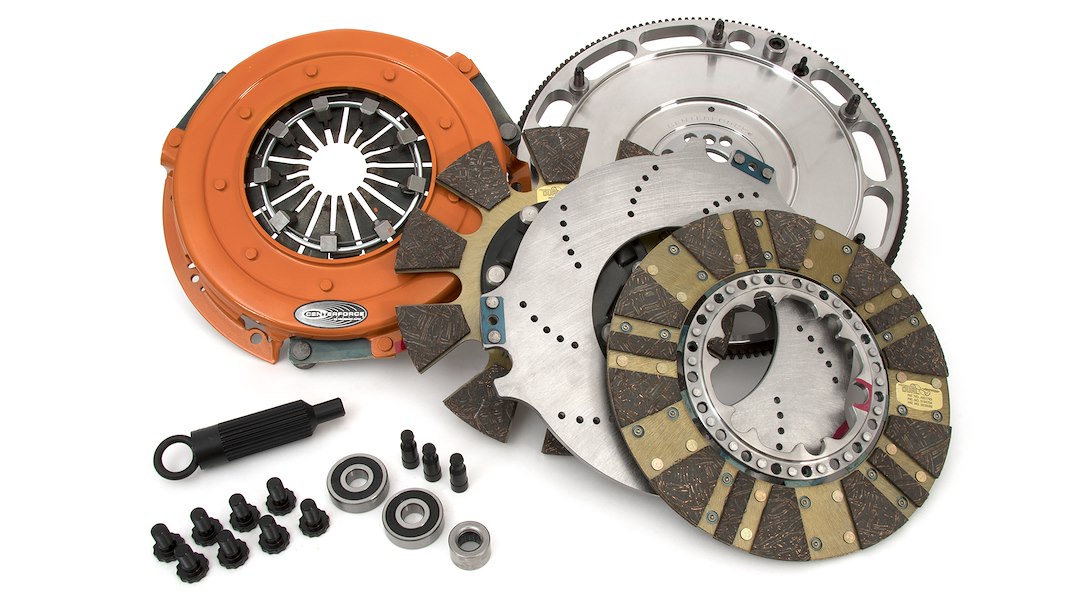

Centerforce Clutch Set, Dyad Ds, 10.4 Inch Clutch Diameter, 1-1/8 Inch X 26 Spline Input Shaft, Nodular Iron Pressure Plate – 413614844
$2,159.89
Centerforce Clutch Set, Dyad Ds, 10.4 Inch Clutch Diameter – 413614844
Description
Clutch Set; DYAD DS; 10.4 Inch Clutch Diameter; 1-1/8 Inch x 26 Spline Input Shaft; Nodular Iron Pressure Plate; 1300 Foot Pound Torque Capacity; Dual Disc; Segmented Organic Friction Material; Segmented Face Design/ Sprung Hub; Billet Steel Flywheel; 14.105 Inch Ring Gear Outside Diameter; 168 Tooth Flywheel; M11 x 1.50 x 23 Inch Flywheel Crank Bolts; With Pilot Bushing/ Alignment Tool/ 8 Bolt Crank/ Mounting Hardware
Attributes:
- Input Shaft Size: 1-1/8 Inch X 26 Spline
- Pressure Plate Design: Diaphragm
- Disc Diameter: 10.4 Inch
- Number Of Friction Discs: 2 Disc
- Flywheel Tooth Count: 168
- Disc Friction Material: Organic/ Carbon composite
- Disc Friction Face Design: Full Face
- Disc Hub Design: Solid/ Sprung
- Torque Holding Capacity: 1300 Feet/ Pound
- Flywheel Material: Billet Steel
- Includes Throwout Bearing: No
- Includes Pilot Bearing: Yes
- Includes Alignment Tool: Yes
Features & Benefits:

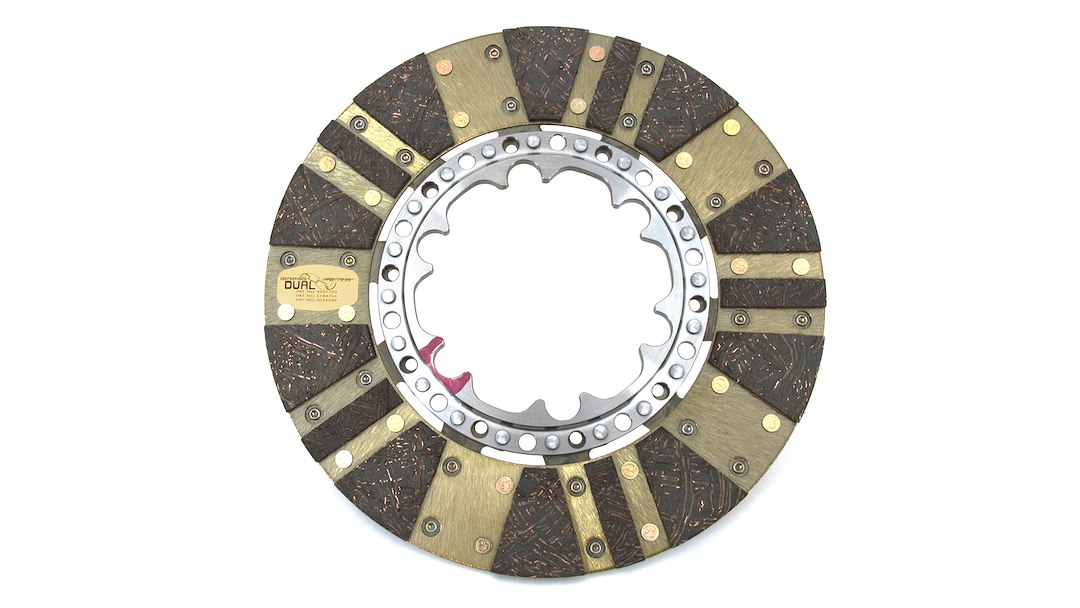

- Sprung Hub Disc With Organic And Carbon Composite Material
- 168 Tooth R.Gear, 8 Bolt Crank, And 0 Ounce Counter Balance
- Holds Up To 1300 Feet Per Pound Of Torque
- 10.4 Inch Patented Multi-Disc Clutch Offers Smooth Engagement, Light Pedal, And High-End Holding Capacity
- Limited 1 Year Warranty
About Product:

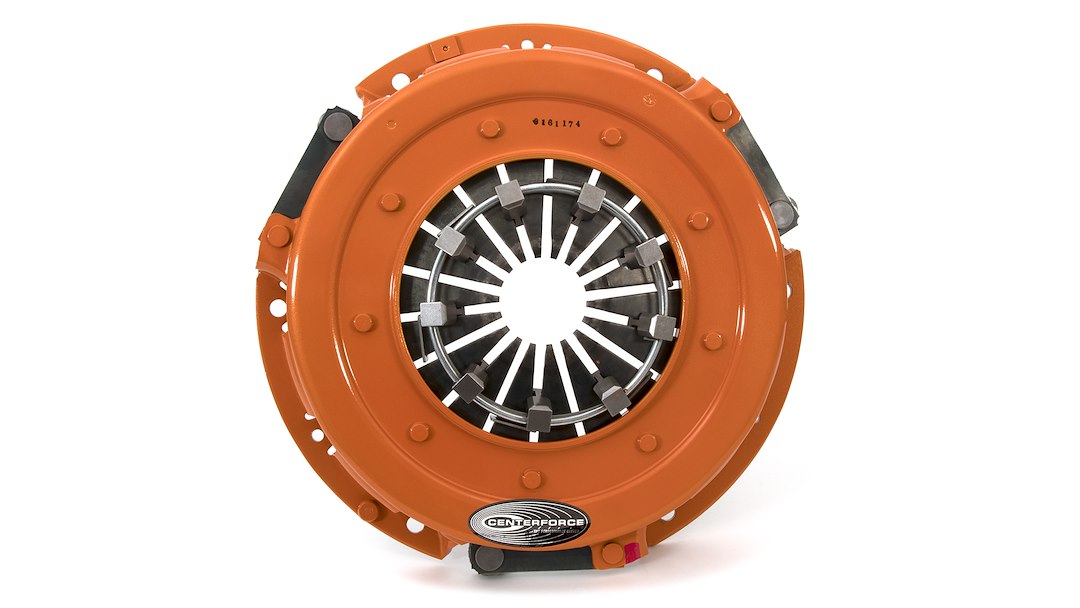

The Centerforce® DYAD DS 10.4 Inch twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 Feet per Pound of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with organic segmented facings providing increased holding capacity and the sprung/dampened drive disc provides smooth drivability. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM’s. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the provided ARP fasteners.
Additional information
| Weight | 49.75 lbs |
|---|---|
| Dimensions | 18 × 18 × 5.5 in |
| Brand | CENTERFORCE |
| Manufacturer Part Number | 413614844 |
