Centerforce Clutch Set, Dyad Xds, 10.4 Inch Clutch Diameter, 1-1/8 Inch X 26 Spline Input Shaft, Iron Pressure Plate, Twin Disc – 415115705
$2,265.28
Centerforce Clutch Set, Dyad Xds, 10.4 Inch Clutch Diameter – 415115705
Description

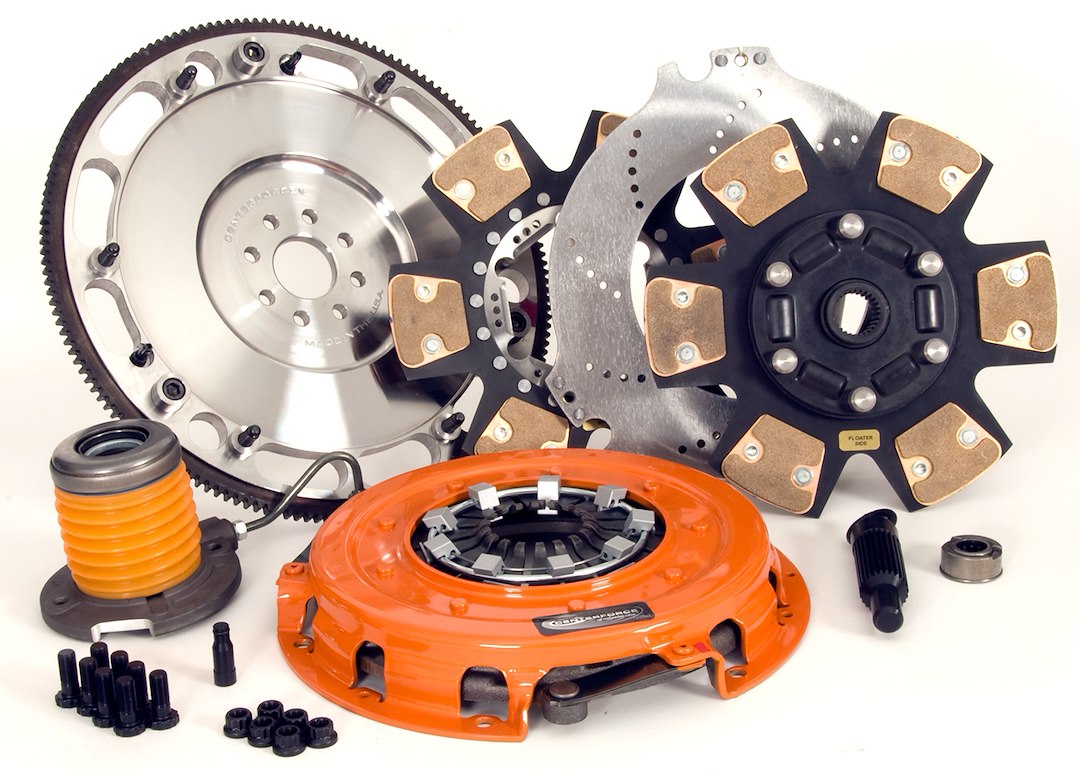

Clutch Set; DYAD XDS; 10.4 Inch Clutch Diameter; 1-1/8 Inch x 26 Spline Input Shaft; Iron Pressure Plate; Twin Disc; Cerametallic Button Style Friction; Sprung Hub; 164 Tooth Billet Steel Flywheel; With Cover/ Discs/ Floater/ Flywheel/ Bolts/ Pilot Bearing/ Slave/ Shim/ Alignment Tool
Attributes:
- Input Shaft Size: 1-1/8 Inch X 26 Spline
- Pressure Plate Design: Diaphragm
- Disc Diameter: 10.4 Inch
- Number Of Friction Discs: 2 Disc
- Flywheel Tooth Count: 164
- Disc Friction Material: Cerametallic
- Disc Friction Face Design: Full Face
- Disc Hub Design: Sprung
- Torque Holding Capacity: 400 To 1600 Feet/ Pound
- Pressure Plate Material: Iron
- Flywheel Material: Steel
- Includes Throwout Bearing: No
- Includes Pilot Bearing: Yes
- Includes Alignment Tool: Yes
Features & Benefits:
- Ball Bearing Pressure Plate
- Patented Multi-Disc Design
- Race Proven Paddle Style Discs
- Quiet, Positive Drive Floater
- Holds 700 To 1600 Feet Per Pound Of Torque
- Precision Balanced
- Limited 1 Year Warranty
About Product:
The Centerforce® DYAD XDS 10.4 Inch twin disc clutch has been developed for vehicles requiring a holding capacity of 700 to 1600 Feet Per Pound of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with metallic paddle/button style friction material providing increased holding capacity. DYAD XDS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM’s. Due to the aggressive nature of this race inspired clutch, vehicles may experience some floater noise and/or chatter during operation. Components are designed, machined and assembled in the USA. DYAD XDS clutches are match balanced and ready for installation using the ARP fasteners.
Additional information
| Weight | 52.95 lbs |
|---|---|
| Dimensions | 18 × 18 × 5.5 in |
| Brand | CENTERFORCE |
| Manufacturer Part Number | 415115705 |
