Fabtech Lift Kit Suspension, 4 Inch Front Lift, 4 Inch Rear Lift – K2292DL
$4,478.59
Fabtech Lift Kit Suspension, 4 Inch Front Lift, 4 Inch Rear Lift – K2292DL
Description

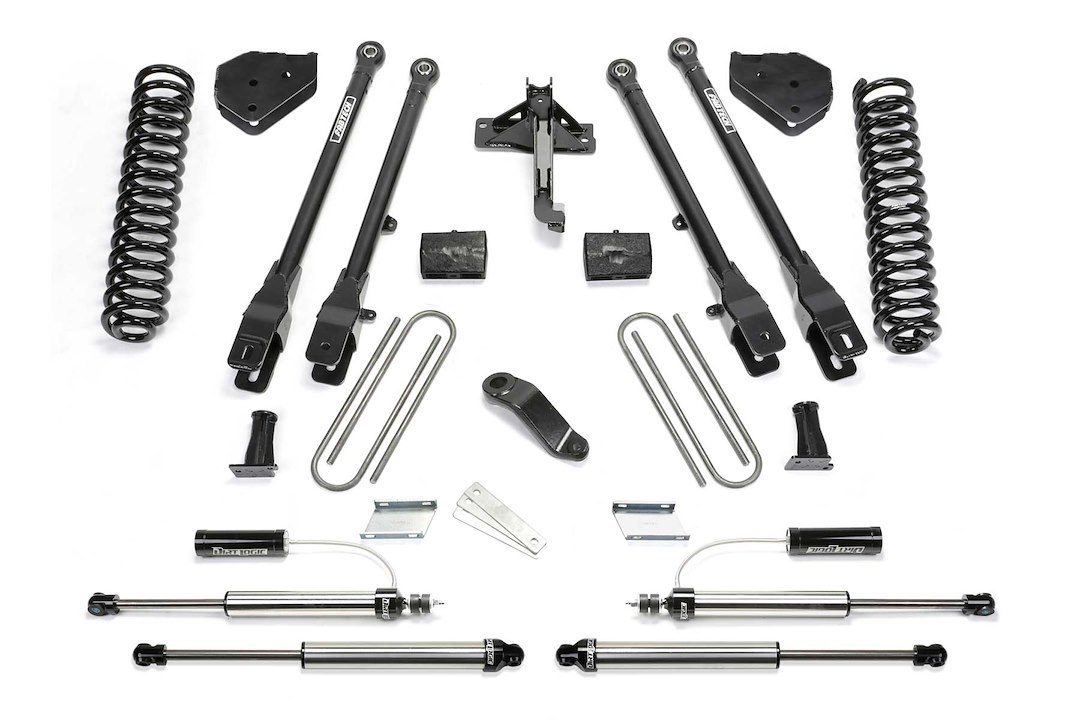

Lift Kit Suspension; 4 Inch Front Lift; 4 Inch Rear Lift; With Front Dirt Logic 2.25 Remote Reservoir Shocks And Rear Dirt Logic 2.25 Shock Absorbers In Kit; Black Components/ Silver Shock Absorbers; With Front Coil Springs/ 4-Link Kit/ Pitman Arm/ Rear Lift Blocks And U Bolts/ track Bar Bracket/ Stabilizer Bar Brackets/ Brake Line Brackets/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 4 Inch
- Rear Lift Amount (IN): 4 Inch
- Maximum Tire Size: 35 x 12.50
- Front Lift Type: Coil Spring
- Rear Lift Type: Blocks And U-Bolts
- Shock Type: Hydraulic/ Nitrogen Gas Charged
- Wheel Backspacing (IN): 4.75
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): -6.35
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Features & Benefits:
- Designed To Provide An Improved Highway Ride Due To Reduced Caster Change And Able To Tackle Rough Offroad Conditions
- Coil Springs Have Been Designed For A Very Compliant Ride Quality Both On And Offroad
- 1/4 Inch Thick Steel Bracketry Repositions The Factory Track Bar To Center The Axle Under The Vehicle With The Increased Lift Height
- Forged Steel Construction With High Strength Material That Exceeds The Factory Specifications
- Heavy-Duty 1/4 Inch Thick Steel Brackets Control The Travel Eliminating Over Cycling Of The Suspension
- 1/4 Inch Thick Steel Drop Brackets Reposition The Front Sway Bar For The Increased Ride Height
- Repositions The Factory Brake Lines Down On The Frame For The New Travel Range Without Having To Open The Brake System Which Keeps Factory Fluid System Intact
- Cast Iron Rear Lift Blocks With An Integrated Bump Stop Replaces The Stock Blocks For Additional Lift Without Changing The Ride Quality Of The Factory Rear Suspension Or Load Carrying Capacity
- Provides Excellent Damping For Offroad Use
- Limited Lifetime Warranty
About Product:
Fabtech’s 4 Link Conversion system for the Ford Super Duty has been designed to provide improved on road performance with the ability to tackle the most rugged offroad terrain. This high end system is a bolt on replacement to the factory Radius Arm suspension and comes with everything needed to convert to a 4 Link front suspension. The system will provide less caster change throughout the travel range which benefits on road driving. Offroad the 4 Link system will provide more articulation than a Radius Arm for increased terrain traversing at all speeds. Include with this system is Dirt Logic 2.25 Stainless Steel reservoir shocks in the front and non reservoir shocks in the rear. These Dirt Logic shocks have been ride tuned to the vehicle with the Fabtech Coil Springs and oversized tires for an excellent ride quality both on and offroad. Fabtech’s 4 Link System has been proven in over 10 years of service in military applications. High quality components with properly designed suspension geometry is the pinnacle of Super Duty suspension systems.
Additional information
| Weight | 295.4 lbs |
|---|---|
| Dimensions | 43.5 × 16 × 10 in |
| Brand | FABTECH |
| Manufacturer Part Number | K2292DL |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 150 vehicles.
