Fabtech Lift Kit Suspension, Basic System, 6 Inch Front Lift, 6 Inch Rear Lift, With Rear Performance Shock Absorbers IN Kit – K1150
$2,066.20
Fabtech Lift Kit Suspension, Basic System, 6 Inch Front Lift – K1150
Description

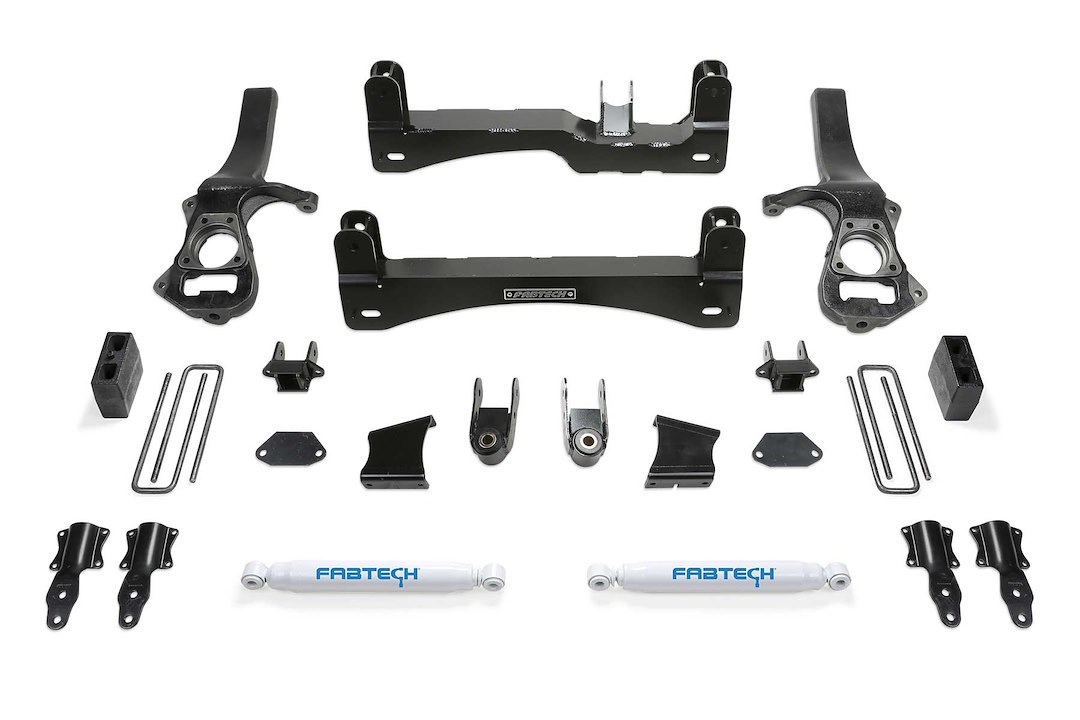

Lift Kit Suspension; Basic System; 6 Inch Front Lift; 6 Inch Rear Lift; With Rear Performance Shock Absorbers In Kit; Black Components/ White Shock Absorbers; With Front Steering Knuckles/ Front and Rear Crossmembers/ Front Shock Extensions/ Rear Lift Blocks/ U Bolts/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 6 Inch
- Front Lift Type: Steering Knuckles
- Rear Lift Type: Blocks And U-Bolts
- Maximum Tire Size: 35
- Shock Type: Hydraulic
- Wheel Backspacing (IN): 5.00
- Minimum Wheel Diameter: 18
- Wheel Offset (MM): 0
- Shocks: With Shocks In Kit
- Color: Black Components/ Black Shock Absorbers
Features & Benefits:
- Welded Box Design Of The Crossmembers Provides Additional Strength To The Front Suspension
- Fabtech’s Extended Length Ductile Iron Steering Knuckles Provide Zero Bump Steer Throughout The Suspension Travel
- Oversized Tie Rods Are Provided To Replace The Stock Units That Are Designed To Handle Oversized Tires
- Factory Coilovers Are Relocated With Heavy-Duty Lower Mounts To Lift The Vehicle While Retaining The Stock Ride Quality
- Billet Spacers Relocate The Factory Closed Cell Bump Stops To Control The Travel Eliminating Over Cycling Of The Suspension
- 5 Inch Tall Steel Rear Lift Blocks Replace The Factory Blocks For Additional Lift Without Changing The Ride Quality Or Load Carrying Capacity
- Extended Length Twin Tube Shocks Provide A Good Highway Ride With The Ability To Handle Offroad Use
- Limited Lifetime Warranty
About Product:
Fabtech’s Basic lift kit features our world renowned IFS suspension design for the Chevy/GMC 1500 2WD providing excellent drive ability both on and offroad. There is zero bump steer throughout the suspension cycle that helps reduce drive fatigue while improving the overall drive ability of the vehicle. The near stock track width keeps the tires under the fenders for a clean appearance. Fabtech’s proprietary steering knuckle geometry provides excellent lock to lock turning radius to maneuver in tight spots. Heavy-Duty 1/4 Inch thick steel crossmembers feature OE style alignment cam pins that utilize the factory cams for easy adjustment. The factory coilover shocks are relocated from the bottom to allow for full steer while achieving 6 Inch of lift. Rear lift is accomplished with a 5 Inch Block and u-bolt system.
Additional information
| Weight | 234.6 lbs |
|---|---|
| Dimensions | 45.5 × 14.5 × 13.58 in |
| Brand | FABTECH |
| Manufacturer Part Number | K1150 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 778 vehicles.
| Year | Make | Model | Trim | Engine |
|---|---|---|---|---|
| Loading fitment... | ||||
