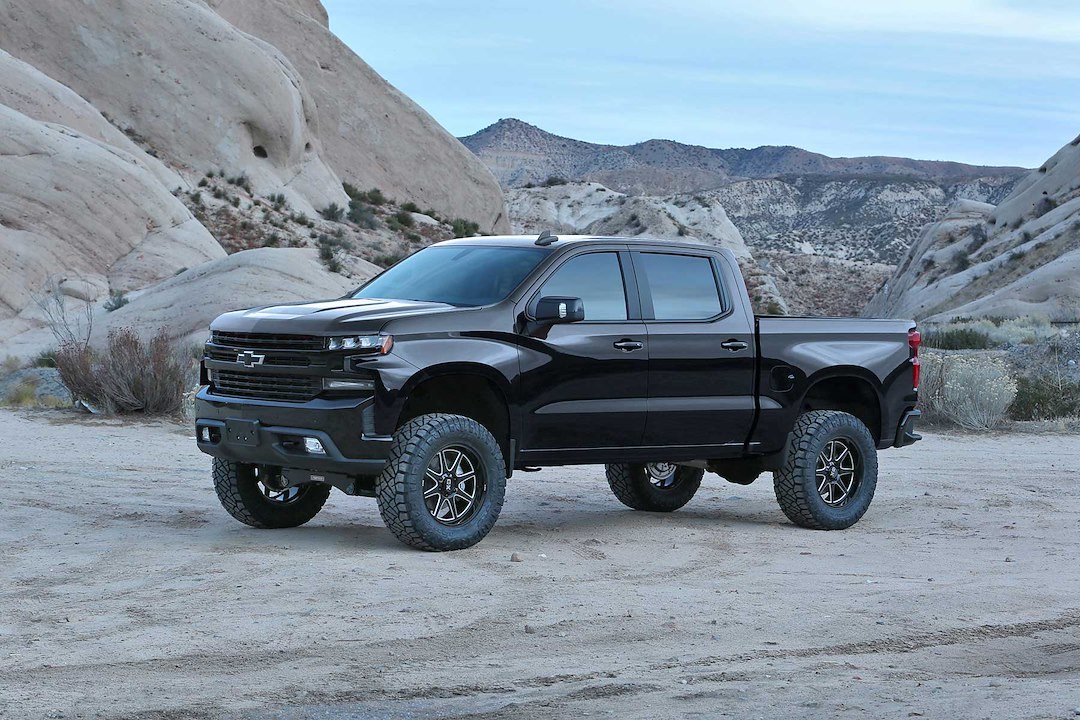

Fabtech Lift Kit Suspension, Performance System, 6 Inch Front Lift, 6 Inch Rear Lift – K1150DL
$4,030.51
Fabtech Lift Kit Suspension, Performance System, 6 Inch Front Lift – K1150DL
Description
Lift Kit Suspension; Performance System; 6 Inch Front Lift; 6 Inch Rear Lift; With Front Dirt Logic 2.5 Coil Over Shock Absorbers And Rear Dirt Logic 2.25 Shock Absorbers In Kit; Black Components/ Silver Shock Absorbers; With Front Steering Knuckles/ Front and Rear Crossmembers/ Rear Lift Blocks/ U Bolts/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 6 Inch
- Maximum Tire Size: 35 x 12.50
- Front Lift Type: Steering Knuckles
- Rear Lift Type: Blocks And U-Bolts
- Shock Type: Hydraulic/ Nitrogen Gas Charged
- Wheel Backspacing (IN): 5.00
- Minimum Wheel Diameter: 18
- Wheel Offset (MM): 0
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Features & Benefits:
- Welded Box Design Of The Crossmembers Provides Additional Strength To The Front Suspension
- Fabtech’s Extended Length Ductile Iron Steering Knuckles Provide Zero Bump Steer Throughout The Suspension Travel
- Oversized Tie Rods Are Provided To Replace The Stock Units That Are Designed To Handle Oversized Tires
- Dirt Logic 2.5 Coilovers Are Constructed Of A Stainless Steel Body With NitroSteel ® Piston Rod For Maximum Corrosion Resistance And Durability
- Billet Spacers Relocate The Factory Closed Cell Bump Stops To Control The Travel Eliminating Over Cycling Of The Suspension
- 5 Inch Tall Steel Rear Lift Blocks Replace The Factory Blocks For Additional Lift Without Changing The Ride Quality Or Load Carrying Capacity
- Provides Excellent Damping For Offroad Use
- Limited Lifetime Warranty
About Product:
Fabtech’s world renowned IFS suspension design for the Chevy/GMC 1500 2WD provides excellent drive ability both on and offroad. There is zero bump steer throughout the suspension cycle that helps reduce drive fatigue while improving the overall drive ability of the vehicle. The near stock track width keeps the tires under the fenders for a clean appearance. Fabtech’s proprietary steering knuckle geometry provides excellent lock to lock turning radius to maneuver in tight spots. Heavy-Duty 1/4 Inch thick steel crossmembers feature OE style alignment cam pins that utilize the factory cams for easy adjustment.
Additional information
| Weight | 270.4 lbs |
|---|---|
| Dimensions | 45.5 × 15.13 × 13.58 in |
| Brand | FABTECH |
| Manufacturer Part Number | K1150DL |
