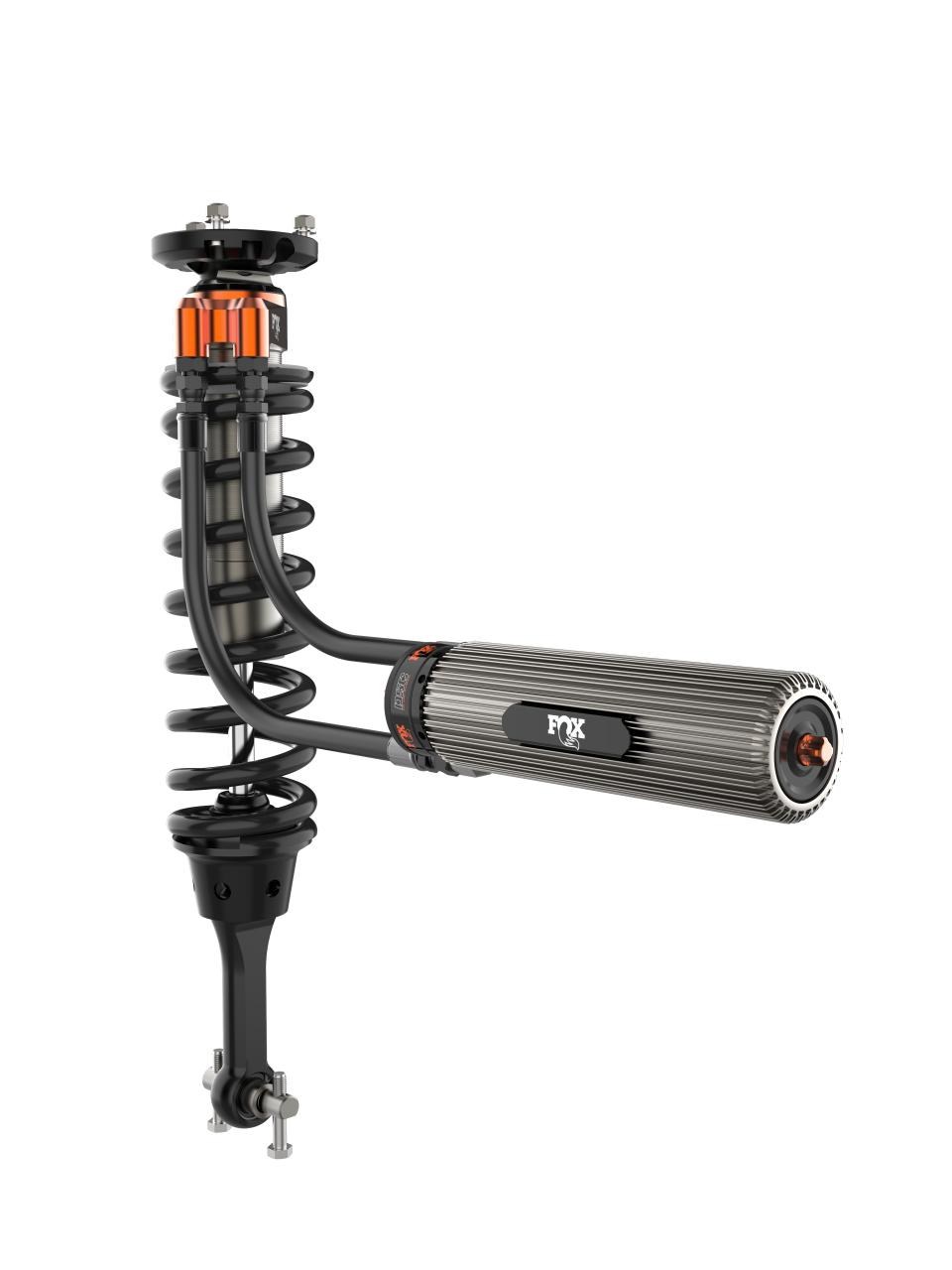

Fox Racing Shox Coil Over Shock Absorber, 3.0 Factory Series, Dual Speed Compression (dsc) Adjustment for High and Low Speed Dampening – 883-06-191
$3,770.91
Fox Racing Shox Coil Over Shock Absorber, 3.0 Factory Series – 883-06-191
Description
Coil Over Shock Absorber; 3.0 Factory Series; Dual Speed Compression (DSC) Adjustment For High And Low Speed Dampening; Ride Height Non Adjustable; Single Flat End Coil Spring; Black/ Grey/ Orange; With Remote Reservoir/ Shock Absorber/ Adjustment Collar/ Adjustment Knob/ Spring; Set Of 2
Attributes:
- Adjustable: Yes
- Valving Type: Application Specific Valving
- Shock Type: Gas Charged
- Upper Mounting Type: Stud
- Lower Mounting type: Cross Pin
- Front/Rear Drop (IN): 2-1/2 Inch Front
- Extended Height (IN): 22.49 Inch
- Compressed Height (IN): 17-1/4 Inch
- Shock Body Color: Black/ Grey/ Orange
- Shock Body Material: Aluminum
- Quantity: Set Of 2
- Spring Color: Black
- Includes Mounting Hardware: Yes
Features & Benefits:
- 3 Inch Impact Extruded And CNC Machined 6061-T6 Hard-Anodized Aluminum Body
- Patented, Internal Bypass Design
- Application Specific Springs
- Features 7/8 Inch Stainless Steel Shafts
- Vehicle-Specific Tuning Maximizes Performance
- Redundant Sealing Pack System: Main Seal, Wiper Seal, Scraper Seal
- Recirculating Reservoir Bridge Keep Shock Temperatures Cool
- Finned Reservoir, With DSC Adjuster
- Rear Shaft Guards Protect Against Roost
- Limited 1 Year Warranty
About Product:
FOX Factory Race Series 3.0 Internal Bypass shocks for the 14th generation Ford F-150 deliver position-sensitive damping technology, Dual Speed Compression (DSC) adjustment and high-speed ready performance in a bolt-on kit. Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping force through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs and provide an initial catch for landing. Shock fluid bypasses the main piston through a series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston. The Factory Race Series shocks also stay cool by utilizing a Recirculating Reservoir Bridge. The bridge circulates shock fluid between the finned external reservoir and body using checked ports. Type III anodization prevents corrosion and wear of the 3 Inch diameter aluminum bodies. The DSC adjuster allows you to dial in your F-150 for load, environment and driving style. FOX Internal Bypass shocks deliver the support and confidence you need while driving Mach-3 through rugged terrain. Experience race-bred performance next time you leave the pavement.
Additional information
| Weight | 99 lbs |
|---|---|
| Dimensions | 39.25 × 20.37 × 11.25 in |
| Brand | FOX SHOX |
| Manufacturer Part Number | 883-06-191 |
