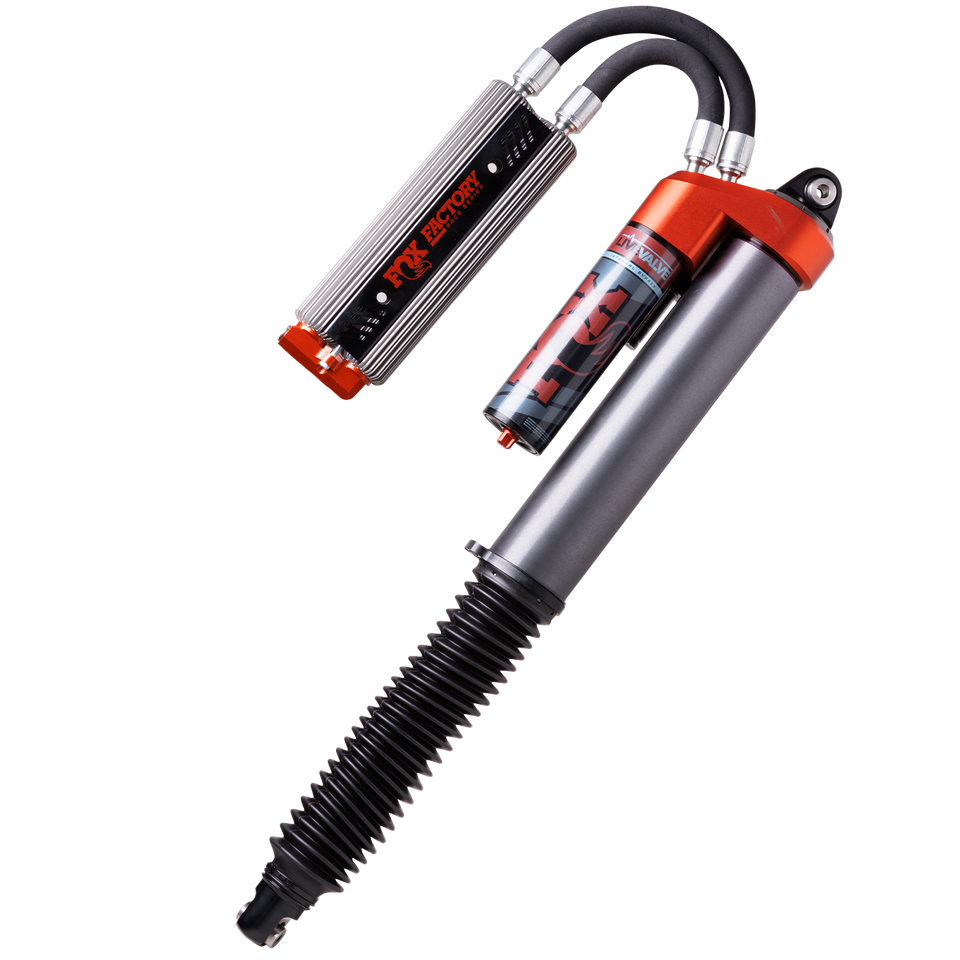

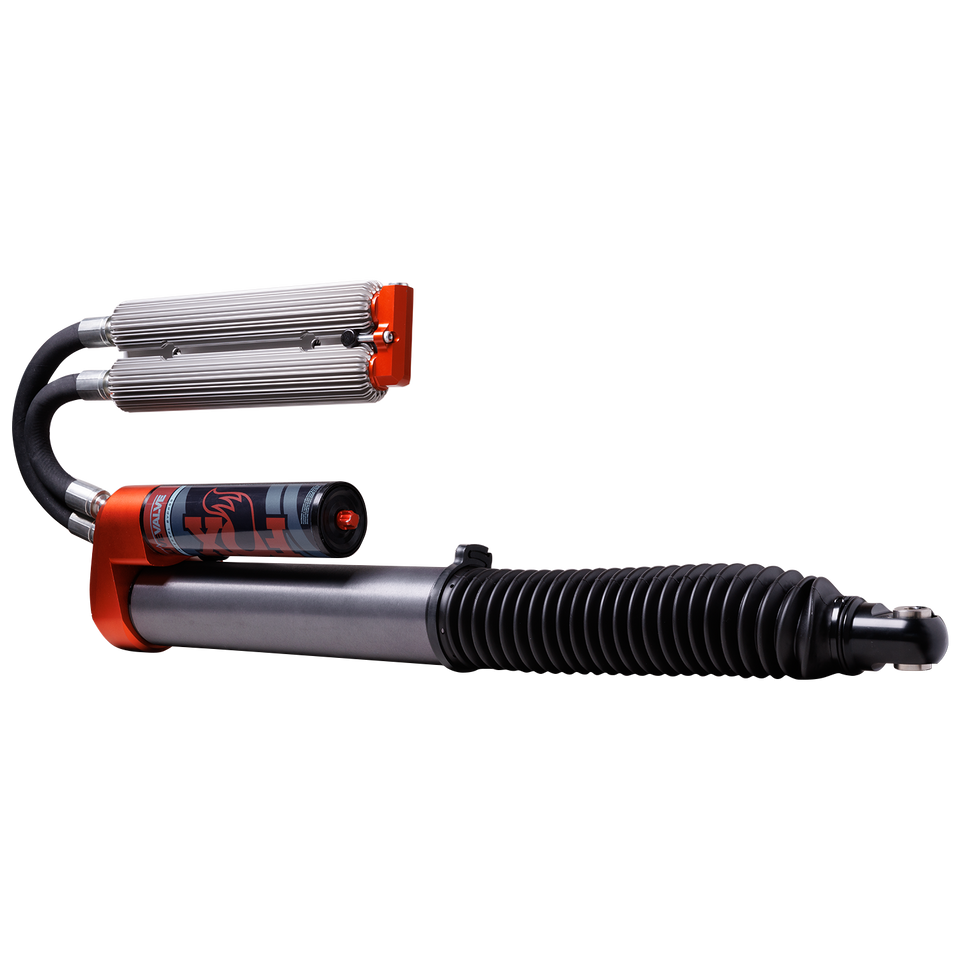

Fox Racing Shox Shock Absorber, 3.0 Factory Series, Hydraulic/ Nitrogen Gas Charged, 1 Year Factory Warranty – 883-06-183
$3,755.49
Fox Racing Shox Shock Absorber, 3.0 Factory Series – 883-06-183
Description
Shock Absorber; 3.0 Factory Series; Hydraulic/ Nitrogen Gas Charged; 1 Year Factory Warranty; Quick Switch (QS3) Adjustable Valving; 32.25 Extended Height/ 19.99 Compressed Height; EYELET Top Mount/ EYELET Bottom Mount; With Shock Boot; Aluminum; Set Of 2
Attributes:
- Type: Hydraulic/ Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 32-1/4 Inch
- Compressed Length (IN): 19.99 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes

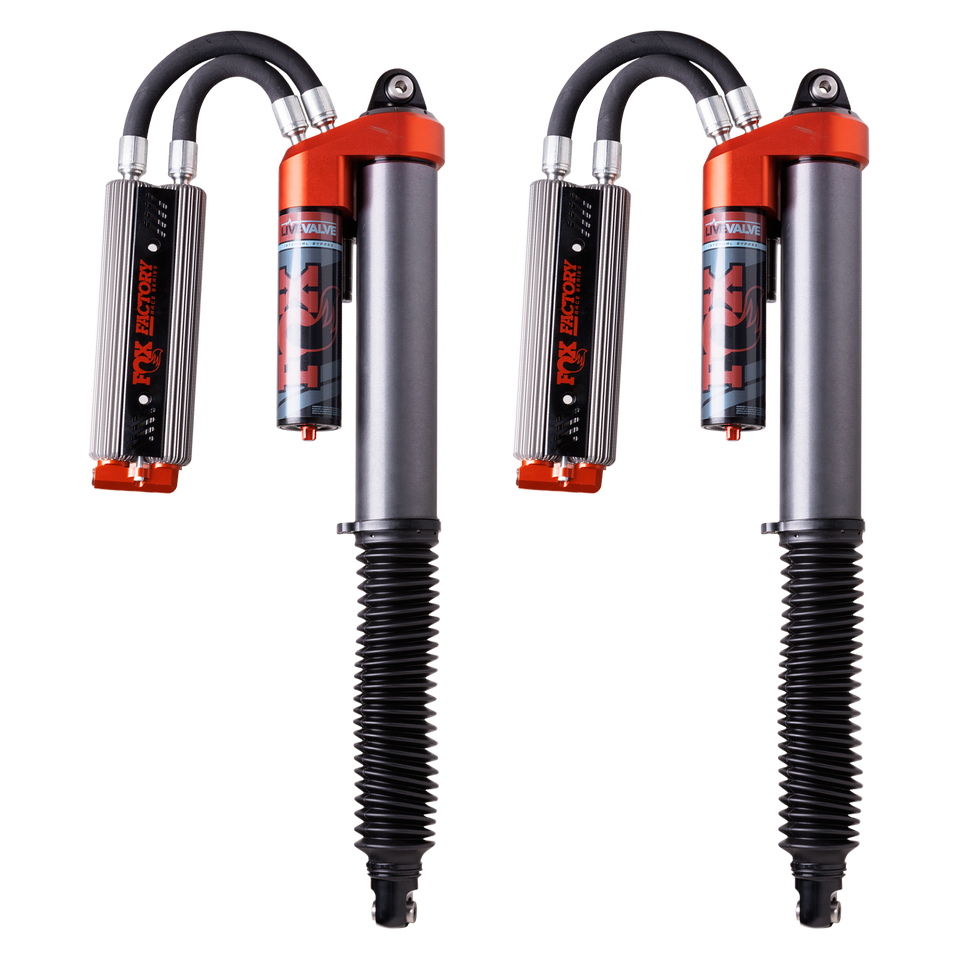

- Quantity: Set Of 2
- Universality: Vehicle Specific
- Body Color: Gray
- Rod Diameter (IN): 7/8 Inch
- Valving Type: Application Specific Valving
- Rod Material: Steel
- Body Material: Aluminum
- With Reservoir: Yes
- Includes Dust Shield: No

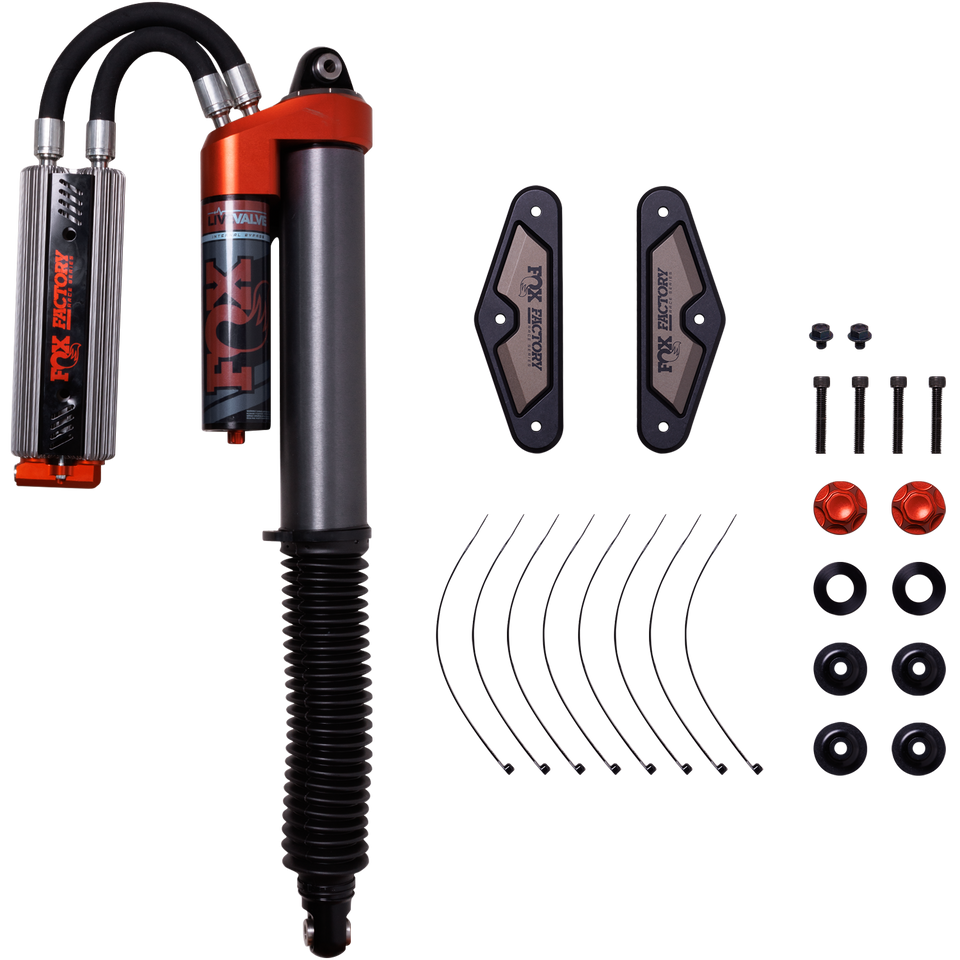

- Includes Hardware: Yes
- Includes Boot: Yes
- Estimated Install Time (Hours): 1
Features & Benefits:
- 3.2 Inch Shock Bodies Can Withstand Internal Pressures Over 3000 Pounds Per Square Inch
- Position And Velocity Sensitive Damping Maximize Control Through Any Terrain
- Patented, Internal Bypass Is Specifically Tuned To Accommodate A Lifted Ride Height
- Coil Overs Utilize 1 Inch Hard Chromed Steel Shafts And An Optimized Spring Rate
- Recirculating Dual Hoses, Rear ECS2 Coolers, And Front Finned Reservoirs Increase Shock Cooling
- Redesigned Shock Mounting Improves Clearance Under Extreme Suspension Travel
- Guaranteed To Fit All 3rd Generation Single Valve Raptors
- Limited 1 Year Warranty
About Product:
FOX Factory Race Series 3.2 Live Valve Internal Bypass shocks deliver semi-active adjustment, position-sensitive damping technology, and plug-and-play integration with OEM electronics in a bolt-on kit. Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping force through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston. Recirculating Reservoirs enable a continuous exchange of shock fluid between the finned external reservoir and body using a checked piston, keeping shock temperatures cool for better performance.
Additional information
| Weight | 99 lbs |
|---|---|
| Dimensions | 38.5 × 20 × 11.25 in |
| Brand | FOX SHOX |
| Manufacturer Part Number | 883-06-183 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 10 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
