ICON Vehicle Dynamics Lift Kit Suspension, Stage 2, 0 to 2 Inch Front Lift, 0 to 1.75 Inch Rear Lift – K40012T
$2,965.35
ICON Vehicle Dynamics Lift Kit Suspension, Stage 2 – K40012T
Description

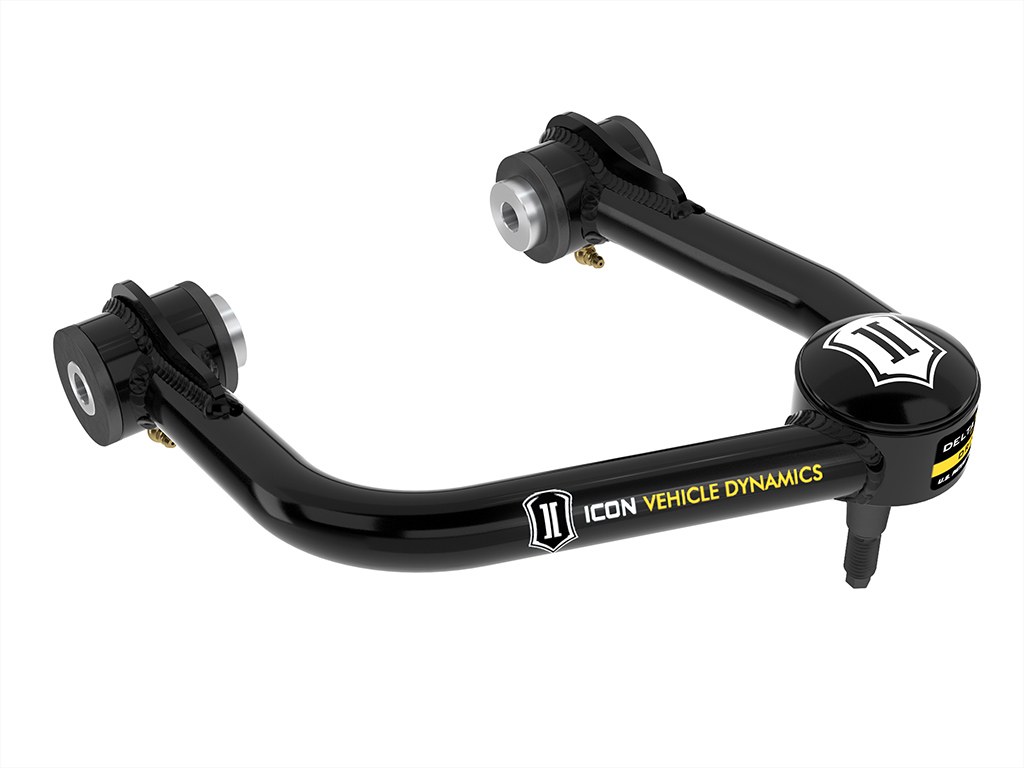

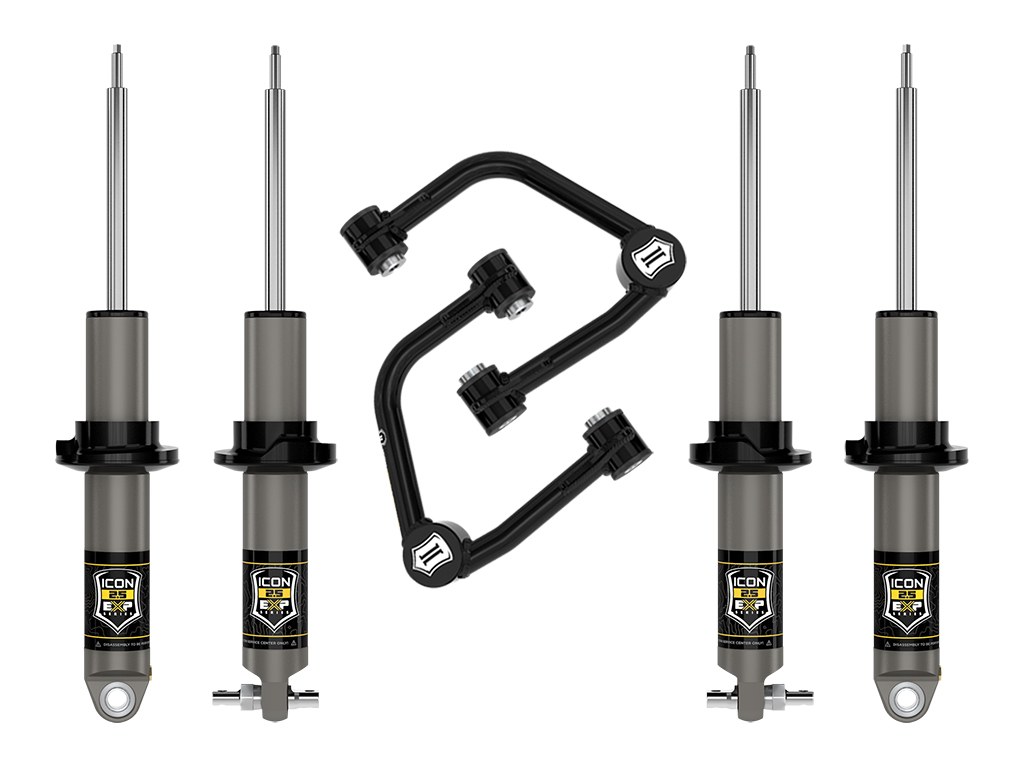

Lift Kit Suspension; Stage 2; 0 To 2 Inch Front Lift; 0 To 1.75 Inch Rear Lift; With Front And Rear Coil Over Shock Absorbers In Kit; Black Components; With Front Tubular Upper Control Arms/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 0 To 2 Inch
- Rear Lift Amount (IN): 0 To 1-3/4 Inch
- Front Lift Type: Coil Over Shock Absorbers
- Rear Lift Type: Coil Over Shock Absorbers
- Maximum Tire Size: 35 x 12.50
- Shock Type: Gas Charged
- Wheel Backspacing (IN): 5.75
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): 25
- Shocks: With Shocks In Kit
- Color: Black/ Silver
Features & Benefits:
- CNC Machined 6061 Aluminum Components With A Black Anodized Finish
- One-Piece, Impact Extruded, Hard Anodized Aluminum Cylinders Offer Excellent Corrosion Resistance And Consistent Finish
- Inverted Shaft Up Design Featuring 7/8 Inch Diameter, Induction Hardened, Chrome Plated Shafts
- Vehicle Specific Design For 2021-UP Ford Bronco With HOSS 2.0 Suspension Package
- Vehicle Specific Tuned Shocks For Superior Shock Damping And Vehicle Control
- Adjustable Ride Heights From 0 To 2 Inch Of Front Lift And 0 To 1-1/4 Inch Of Rear Lift Over Stock With The Use Of Snap Rings
- Utilizes Factory Coils And Coil Hardware
- PTFE Lined Spherical Bearings For Extended Longevity And Minimal Deflection
- 100 Percent Bolt-On: No Cutting Or Welding Necessary For Installation
- Limited Lifetime Warranty
About Product:

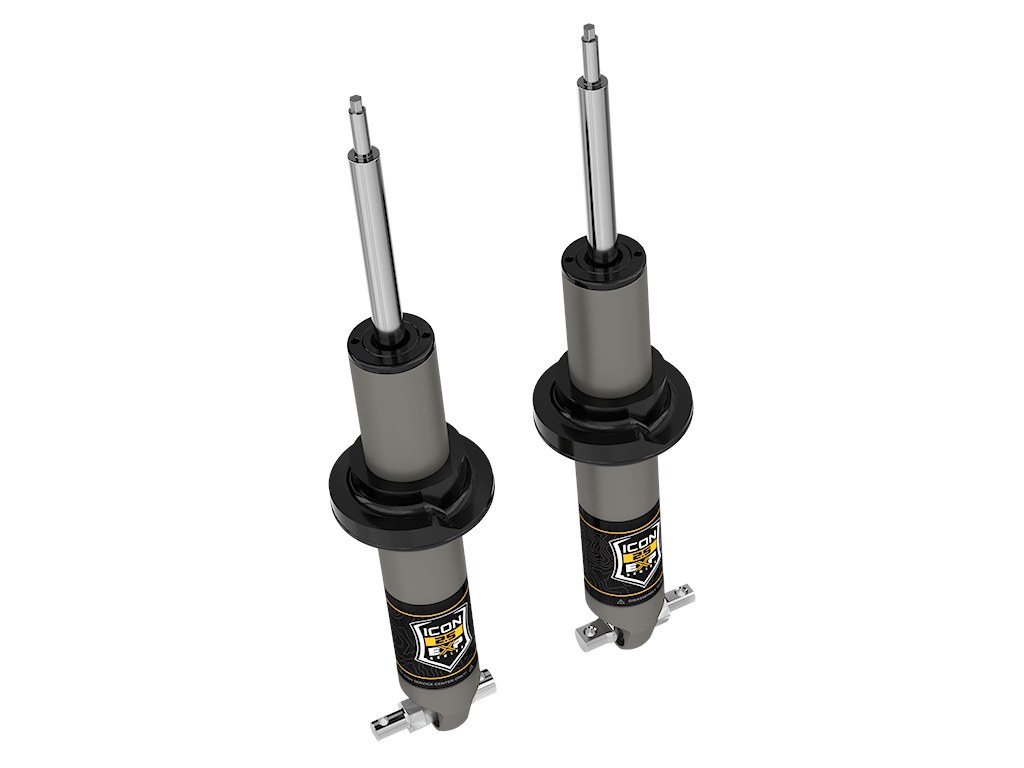

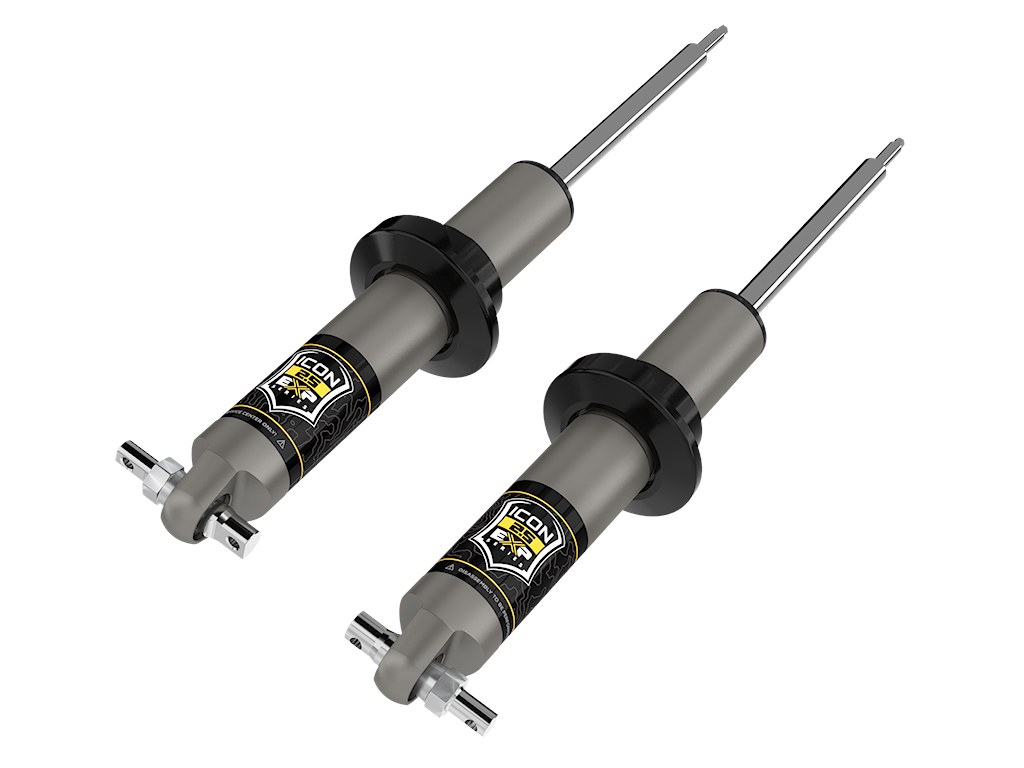

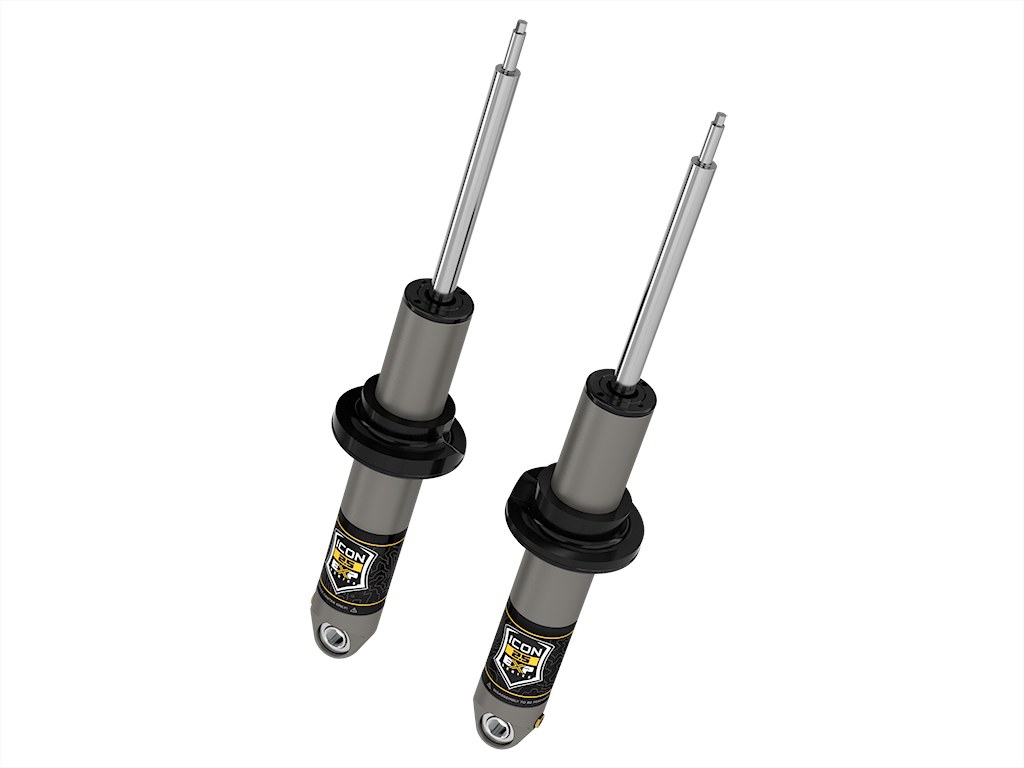

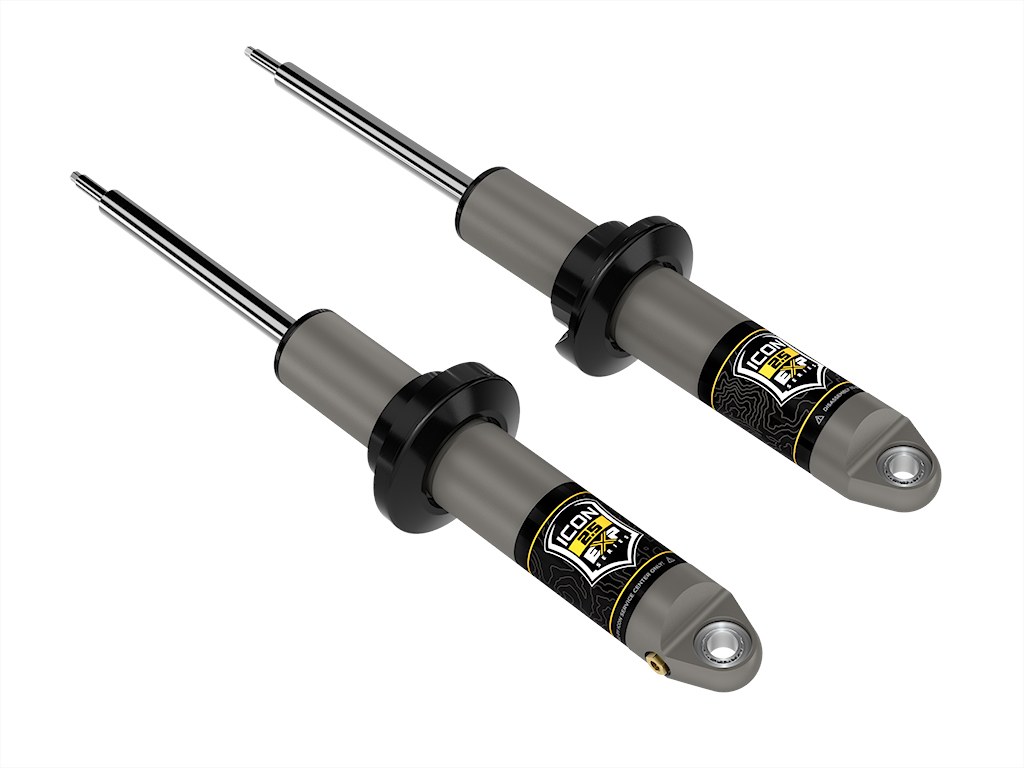

The ICON Vehicle Dynamics Stage 2 Suspension System for the 2021-UP Ford Bronco features front and rear 2.5 EXP Series coilovers to yield increased wheel travel along with superior ride quality and suspension performance both on and off-road. 2.5 EXP Series coilovers combine the performance of a fully rebuildable 2-1/2 Inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Bronco’s factory coil spring and other components. EXP coilovers use a series of snap-ring grooves machined into the shock body to provide easily-selectable ride height adjustment from 1.375 to 3 Inch of front lift and 1-1/2 to 2-3/4 Inch of rear lift over stock on Bronco’s equipped with the OE HOSS 2.0 suspension package. EXP Series is based on ICON’s proven 2-1/2 Inch diameter Aluminum Series shock absorber, featuring a one-piece impact-extruded aluminum shock body. Hard anodizing provides a great-looking, consistent finish with superior resistance to abrasion and corrosion. The massive 7/8-inch diameter shaft is induction hardened and chrome plated. EXP shocks use the factory shaft-up orientation, with the shaft ends machined to re-use the Bronco’s OE upper shock and spring mounts.
Additional information
| Weight | 77 lbs |
|---|---|
| Dimensions | 35 × 13 × 8 in |
| Brand | ICON |
| Manufacturer Part Number | K40012T |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 81 vehicles.
| Year | Make | Model | Trim | Engine |
|---|---|---|---|---|
| Loading fitment... | ||||
