ICON Vehicle Dynamics Lift Kit Suspension, Stage 4, 3 to 4 Inch Front Lift, 2 to 3 Inch Rear Lift – K40004T
$4,882.09
ICON Vehicle Dynamics Lift Kit Suspension, Stage 4 – K40004T
Description

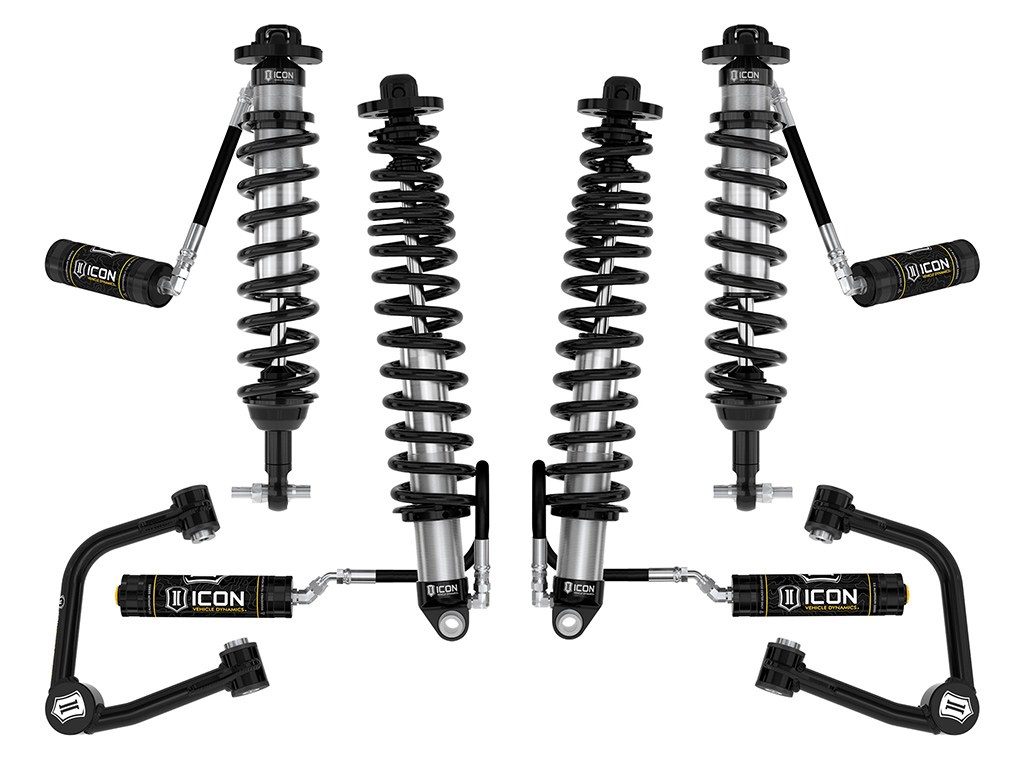

Lift Kit Suspension; Stage 4; 3 To 4 Inch Front Lift; 2 To 3 Inch Rear Lift; With Front And Rear Remote Reservoir Coil Over Shock Absorbers In Kit; Black Components; With Front Tubular Upper Control Arms/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 3 To 4 Inch
- Rear Lift Amount (IN): 2 To 3 Inch
- Front Lift Type: Control Arms
- Rear Lift Type: Control Arms
- Maximum Tire Size: 35 x 12.50
- Shock Type: Nitrogen Gas Charged
- Wheel Backspacing (IN): 5.75
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): 25
- Shocks: With Shocks In Kit
- Color: Black
Features & Benefits:
- 6061 Aircraft Grade Aluminum CNC Machined Components
- Corrosion Resistant CAD Plated Coilover Shock Bodies With 7/8 Inch Diameter Shafts
- Improved Suspension Performance And Ride Quality Over Stock
- Vehicle Specific Tuned Internal Reservoir Front And Rear Shocks For Superior Damping And Vehicle Control
- PTFE Lined Spherical Bearings And Application Specific Mounting Hardware
- ICON Engineered Coil Springs Featuring A Unique Triple Rate Rear Coil Design
- High Strength Alloy CNC Machined Lower Bar Pins
- Billet Aluminum UCAs For Added Strength, Durability, And On-Vehicle Caster/Camber Adjustment For Optimum Drivability
- 100 Percent Bolt-On System: No Drilling, Cutting, Or Welding Necessary For Install
- Limited Lifetime Warranty
About Product:
The ICON Vehicle Dynamics Stage 3 Suspension System for the 2021-UP Ford Bronco features our precision-manufactured, custom valved internal reservoir coilover shocks to yield the maximum travel possible along with superior ride quality and suspension performance both on and off-road. These coilovers also allow for the adjustment of ride height to yield 3 to 4 of front lift and 2 to 3 Inch of rear lift over stock 4-door Broncos without the Sasquatch Package. To accommodate the increased travel and lift height afforded by the ICON Coilovers, this Stage 3 kit comes with Billet Aluminum Upper Control Arms which provide on-vehicle caster and camber adjustability and feature our patented Delta Joint PRO, which allows for up to 90 Degree freedom of movement. The rear shocks are oriented shaft-up with unique triple-rate coil springs to achieve the most rear suspension travel and the best ride quality possible. This suspension system is designed to provide up to 11-1/2 Inch of front suspension travel and 14 Inch of rear suspension travel when used with 35X12.50 tires. It may be safely used with 37 Inch and larger tires if using the optional up-travel limiters (sold separately). The factory crash bars on non-Sasquatch equipped Broncos must be removed to clear 35 Inch and larger tires, but ICON now offers a replacement High Clearance Crash Bar set for those who would like to run larger tires and retain the functionality of the crash bars.
Additional information
| Weight | 107 lbs |
|---|---|
| Dimensions | 37 × 13 × 8 in |
| Brand | ICON |
| Manufacturer Part Number | K40004T |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 81 vehicles.
| Year | Make | Model | Trim | Engine |
|---|---|---|---|---|
| Loading fitment... | ||||
