ICON Vehicle Dynamics Lift Kit Suspension, Stage 2, 1.375 to 3 Inch Front Lift, 1.5 to 2.25 Inch Rear Lift – K40002T
$2,421.55
ICON Vehicle Dynamics Lift Kit Suspension, Stage 2 – K40002T
Description

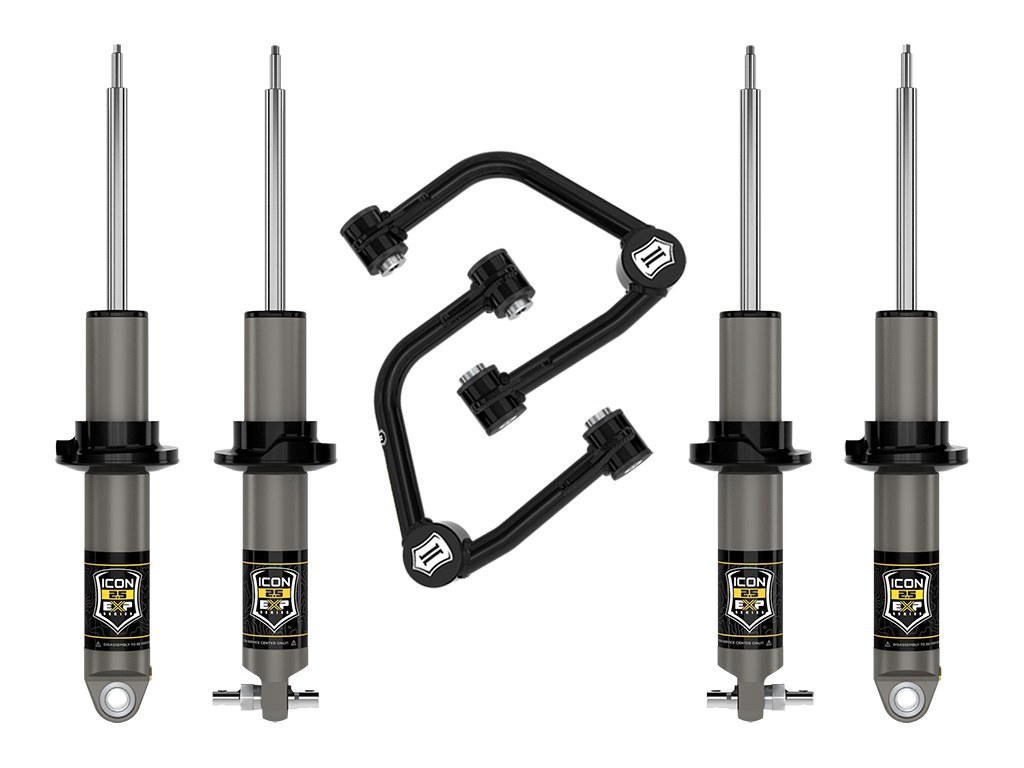

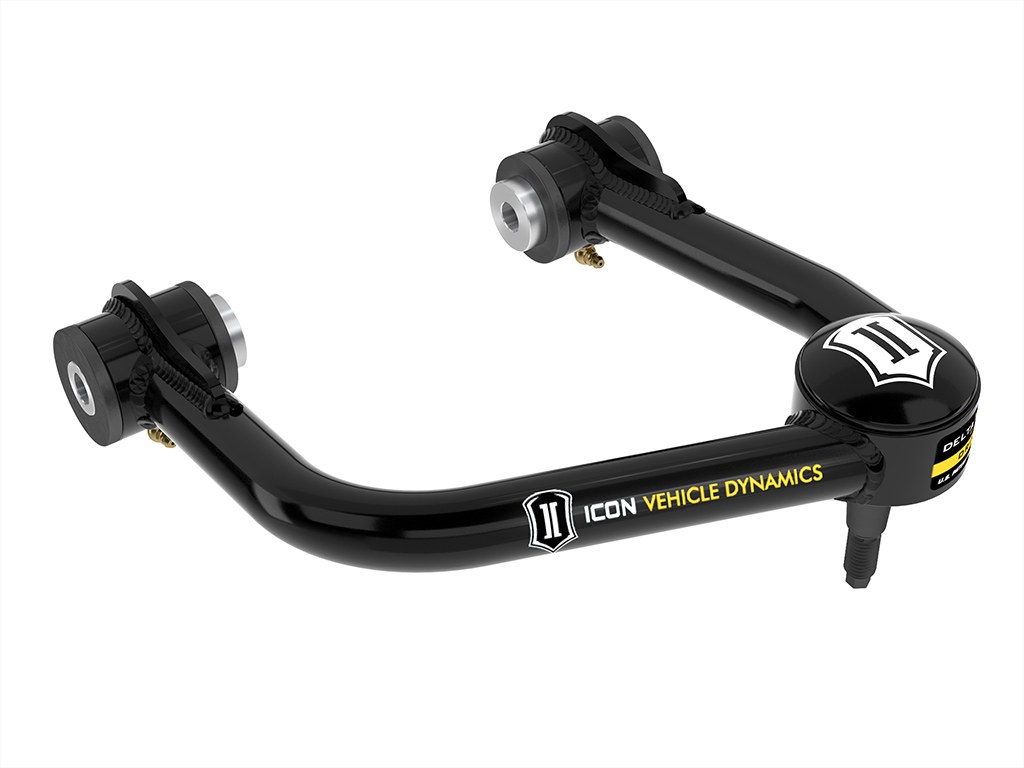

Lift Kit Suspension; Stage 2; 1.375 To 3 Inch Front Lift; 1.5 To 2.25 Inch Rear Lift; With Front And Rear Coil Over Shock Absorbers In Kit; Black Components; With Front Tubular Upper Control Arms/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 1-3/8 To 3 Inch
- Rear Lift Amount (IN): 1-1/2 To 2-1/4 Inch
- Front Lift Type: Coil Over Shock Absorbers
- Rear Lift Type: Coil Over Shock Absorbers
- Maximum Tire Size: 35 x 12.50
- Shock Type: Gas Charged
- Wheel Backspacing (IN): 5.75
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): 25
- Shocks: With Shocks In Kit
- Color: Black/ Silver
Features & Benefits:
- CNC Machined 6061 Aluminum Components With A Black Anodized Finish
- One-Piece, Impact Extruded, Hard Anodized Aluminum Cylinders Offer Excellent Corrosion Resistance And Consistent Finish
- Inverted Shaft Up Design Featuring 7/8 Inch Diameter, Induction Hardened, Chrome Plated Shafts
- Vehicle Specific Design For 2021 To 2022 Ford Bronco With HOSS 1.0 Suspension Package
- Vehicle Specific Tuned Shocks For Superior Shock Damping And Vehicle Control
- Adjustable Ride Heights From 1.375 To 3 Inch Of Front Lift And 1-1/2 Inch To 2-3/4 Inch Of Rear Lift Over Stock With The Use Of Snap Rings
- Utilizes Factory Coils And Coil Hardware
- PTFE Lined Spherical Bearings For Extended Longevity And Minimal Deflection
- 100 Percent Bolt-On: No Cutting Or Welding Necessary For Installation
- Limited Lifetime Warranty
About Product:

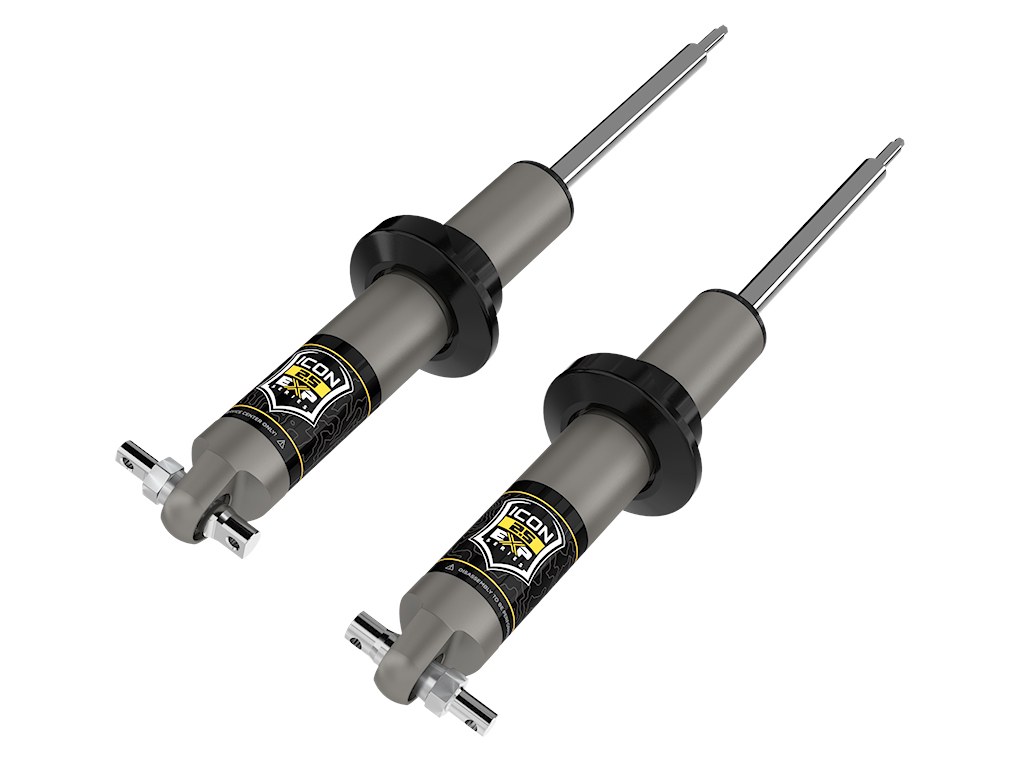

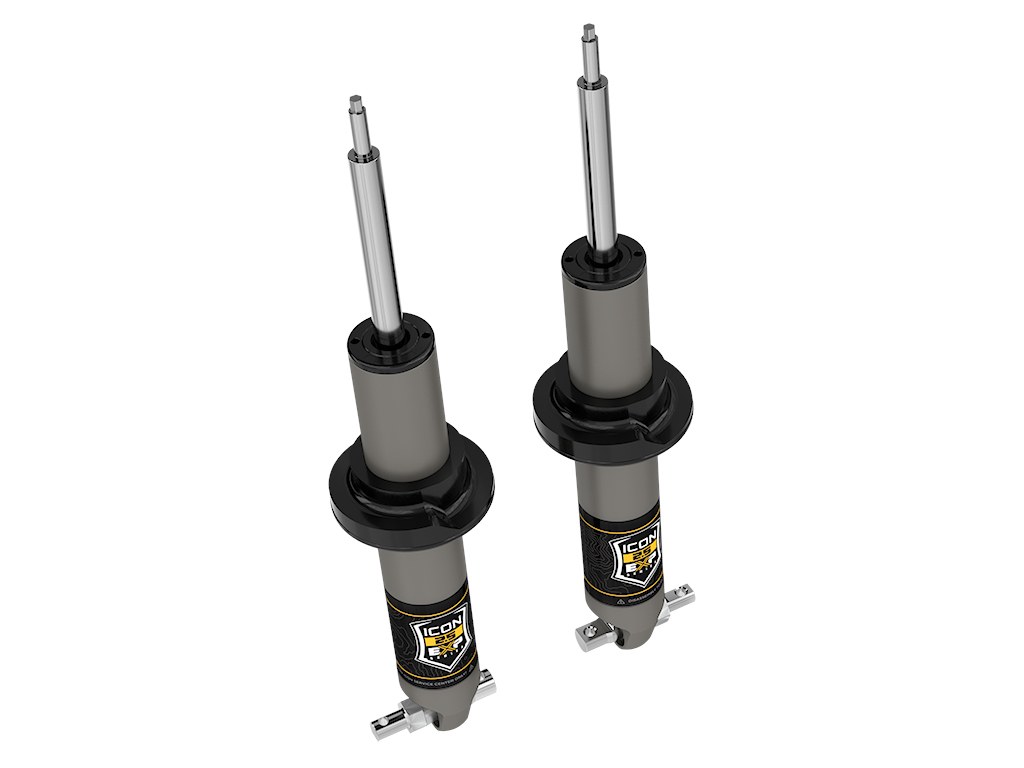

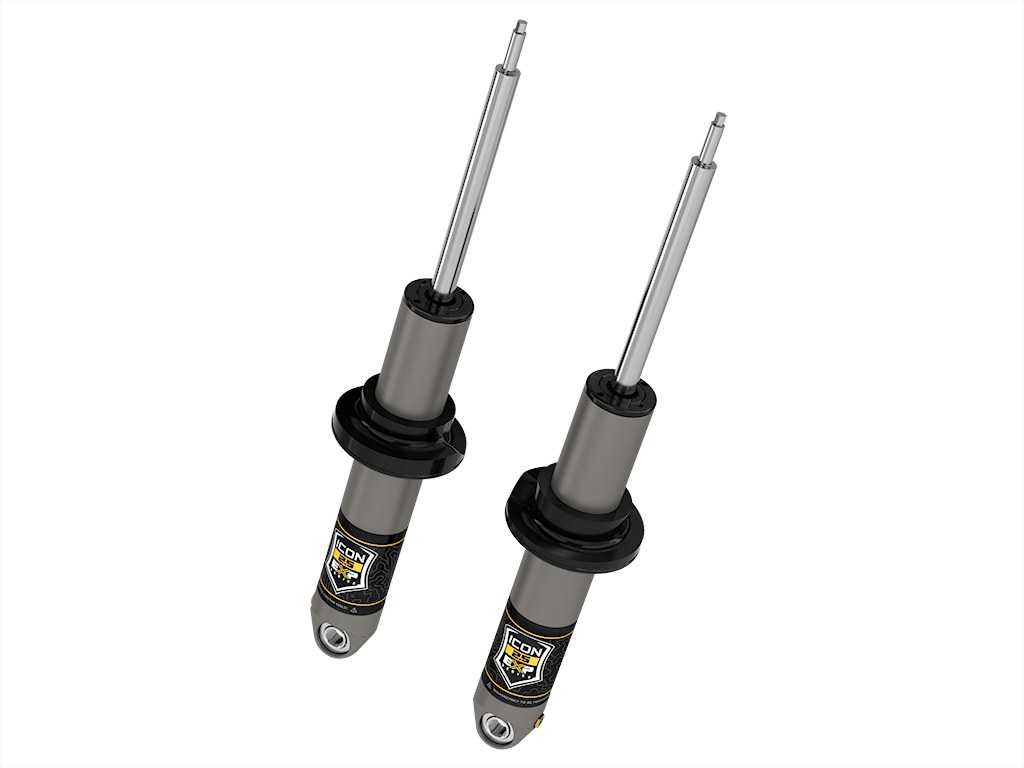

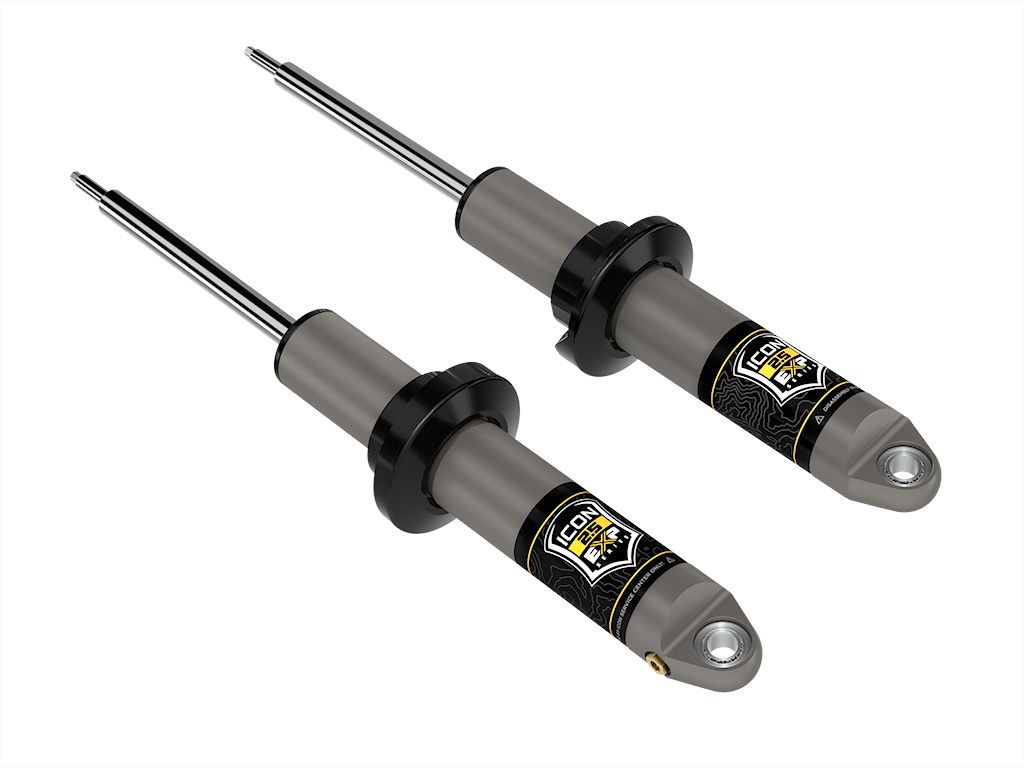

The ICON Vehicle Dynamics Stage 2 Suspension System for the 2021 to 2022 Ford Bronco features front and rear 2.5 EXP Series coilovers to yield increased wheel travel along with superior ride quality and suspension performance both on and off-road. 2.5 EXP Series coilovers combine the performance of a fully rebuildable 2-1/2 Inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Bronco’s factory coil spring and other components. EXP coilovers use a series of snap-ring grooves machined into the shock body to provide easily-selectable ride height adjustment from 1.375 to 3 Inch of front lift and 1-1/2 to 2-3/4 Inch of rear lift over stock on Bronco’s equipped with the OE HOSS 1.0 suspension package. EXP Series is based on ICON’s proven 2-1/2 Inch diameter Aluminum Series shock absorber, featuring a one-piece impact-extruded aluminum shock body. Hard anodizing provides a great-looking, consistent finish with superior resistance to abrasion and corrosion. The massive 7/8-inch diameter shaft is induction hardened and chrome plated. EXP shocks use the factory shaft-up orientation, with the shaft ends machined to re-use the Bronco’s OE upper shock and spring mounts.
Additional information
| Weight | 77 lbs |
|---|---|
| Dimensions | 35 × 13 × 8 in |
| Brand | ICON |
| Manufacturer Part Number | K40002T |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 81 vehicles.
| Year | Make | Model | Trim | Engine |
|---|---|---|---|---|
| Loading fitment... | ||||
