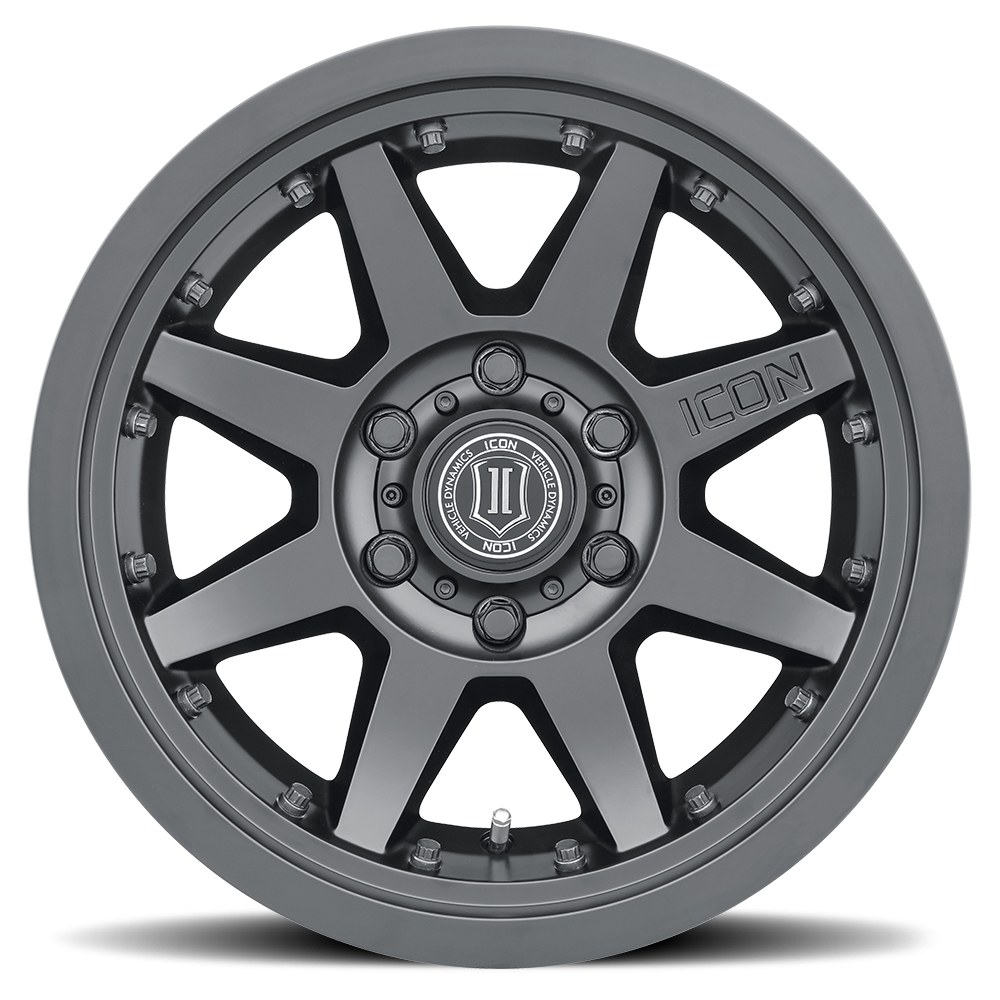

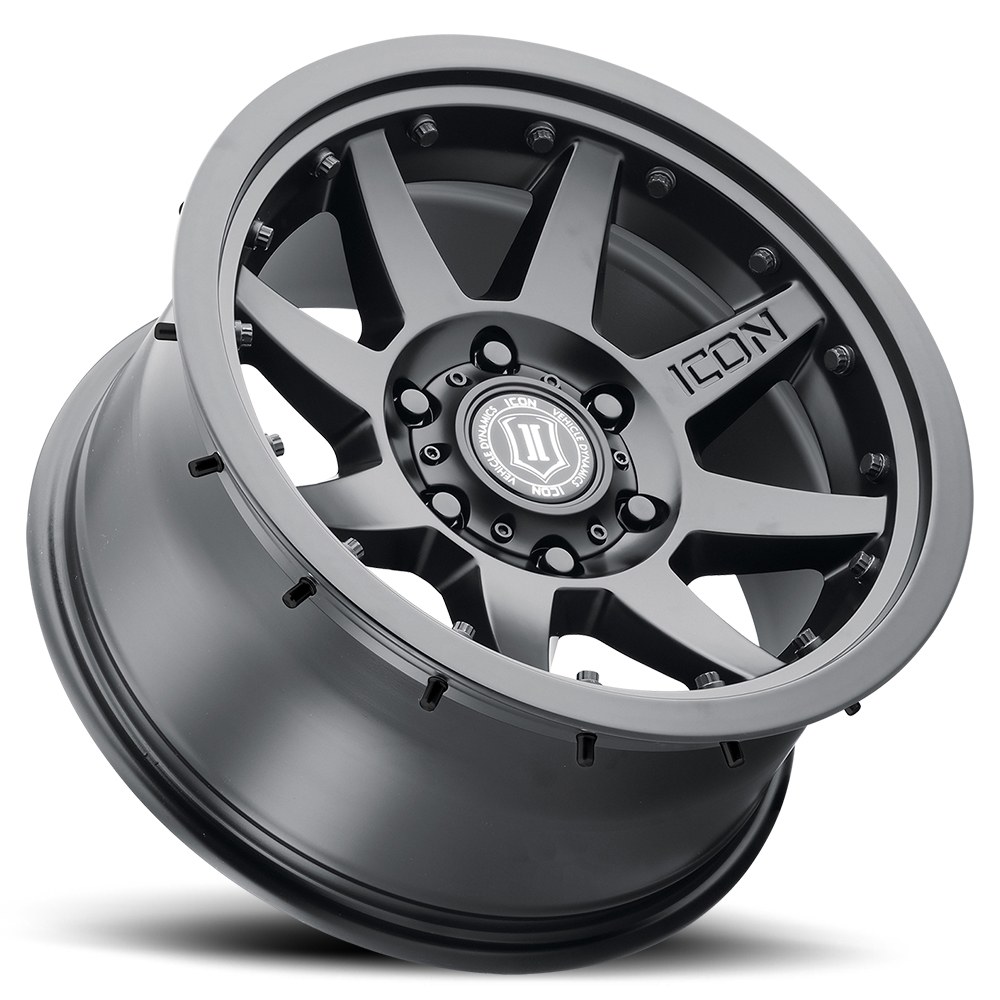

ICON Vehicle Dynamics Wheel, Rebound, 17 Inch Diameter X 8.5 Inch Width, 6 X 135 Millimeter/ 6 X 5.31 Inch Bolt Pattern – 21817856350SB
$187.49
ICON Vehicle Dynamics Wheel, Rebound – 21817856350SB
Description
Wheel; Rebound; 17 Inch Diameter x 8.5 Inch Width; 6 x 135 Millimeter/ 6 x 5.31 Inch Bolt Pattern; 6 Millimeter Offset; 5.00 Inch Backspacing; 60 Degree Conical Seat Lug; 87.10 Millimeter Center Bore; 8 Spoke; 1 Piece Cast Aluminum Construction; Satin Black; 3200 Pound Load Capacity; Compatible With TPMS (Tire Pressure Monitoring System); 40 Inch Max Tire Diameter; With Icon Vehicle Dynamics Logo Center Cap/ Interlock Technology Bead Retention System; Single
Attributes:
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: Not Applicable
- Diameter: 17
- Width: 8.5
- Offset: 6
- Backspacing: 5.00
- Material: Aluminum
- Finish: Painted Satin
- Color: Black
- Bolt Pattern Inch: 6×5.31
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: 6×135
- Bolt Pattern Millimeter: Not Applicable
- Lug Nut Seat Type: 60 Degree Conical
- Center Cap: See Replacement Items
- Center Bore: 87.10
- Lug Nut Design: Acorn
- Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
- Basic Design: 8 Spoke
- With Inserts: No
- Load Capacity: 3200
- Size: 17×8.5
- Max Tire Diameter: 40
- Center Cap Design: Icon Vehicle Dynamics Logo
- Structural Warranty: Lifetime
- Quantity: Single
- Construction: One Piece Cast
- With Hub Centric Ring: No
- Estimated Install Time (Hours): 0.5
Features & Benefits:
- Aluminum Alloy Construction Provides Strength Properties That Are Well Suited For Off-Road Use
- Hardened Bead Retention Pins Utilize A SAE J1926 O-Ring Seal And Are Constructed From High Strength Alloy That Is Thermochemically Treated For Extreme Corrosion Resistance
- Engineered For DOT Compliance
- Bead Retention System Features Alloy Pins That Are Removable, Reusable, And Replaceable
- Patented InnerLock Technology (U.S. Patent No. 11,090,976) Provides The Ultimate Blend Of On-Road Safety And Off-Road Performance, Ideal For The Weekend Warrior
- Strategically Placed Hardware For Maximum Protection From Trail Damage
- Application-Specific Dimensions Optimize Vehicle Dynamics And Tire Clearance
- Reduced Unsprung Weight And Rotating Mass (Compared To A Traditional Bead Lock) Improves Handling Characteristics And Vehicle Dynamics
- Compatible With A Wide Variety Of Tires Without The Need For Any Shims Or Special Tools
- Limited Lifetime Warranty
About Product:
Any hardcore off-road enthusiast knows the numerous benefits that lower tire pressures offer such as improved ride quality and a larger contact patch for increased traction. However, low pressures also increase the risk of de-beading the tire during extreme side loads or aggressive driving. While traditional beadlock wheels address this issue by clamping the tire’s bead, they also need frequent maintenance, require specialty tools/parts, increase rotational mass, and are NOT legal for on-road use. The ICON Alloys Rebound PRO with patented INNERLOCK TECHNOLOGY offers the best of both worlds by using a robust bead retention system to keep the tire bead secured to the wheel while also being fully DOT compliant. This provides confidence in knowing that your wheels are prepared to tackle whatever situation you encounter – on or off the beaten path. InnerLock is ready for any type of terrain and every single adventure. During an accelerated R and D process ICON engineers subjected the Rebound PRO to thousands of miles of real-world abuse throughout harsh and unforgiving environments. After on-vehicle testing was concluded, the Rebound PRO was sent to an independent contractor for precise lab testing, specifically the FMVSS No.139 Tire Bead Unseat Resistance Test (modified to 10 Pounds Per Square Inch). Results from multiple tests validated the effectiveness of ICON’s InnerLock technology by exceeding the mechanical limits of the machine (over 7600 Pounds load) without ever de-beading the tire.
Additional information
| Weight | 32 lbs |
|---|---|
| Dimensions | 20 × 20 × 11 in |
| Brand | ICON |
| Manufacturer Part Number | 21817856350SB |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 1,497 vehicles.
| Year | Make | Model | Trim | Engine |
|---|---|---|---|---|
| Loading fitment... | ||||
