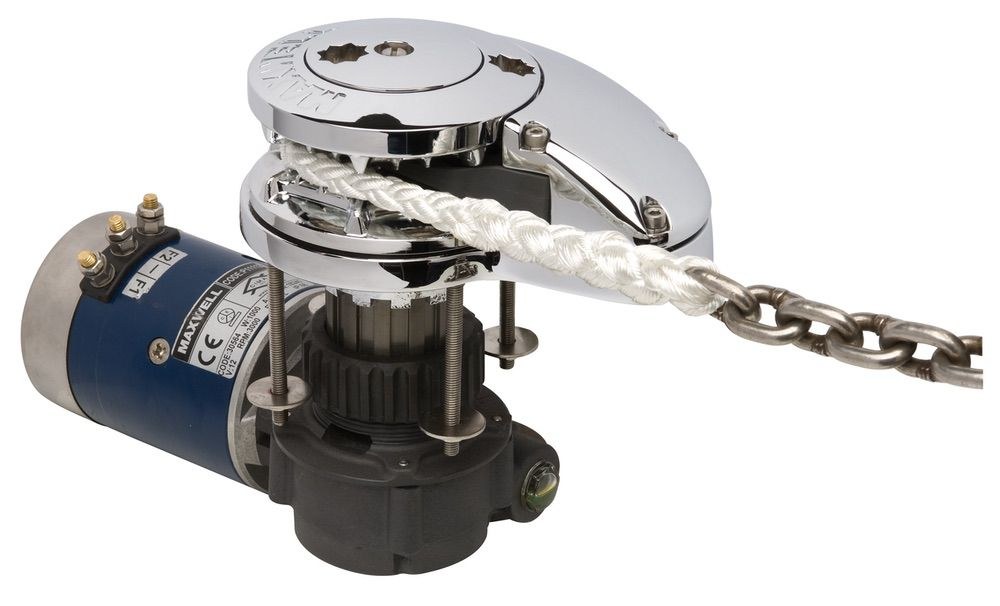

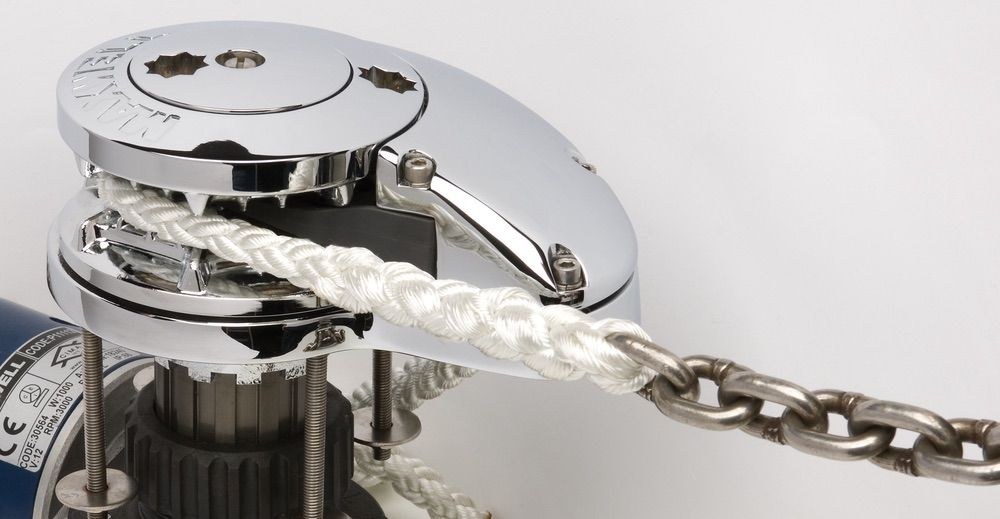

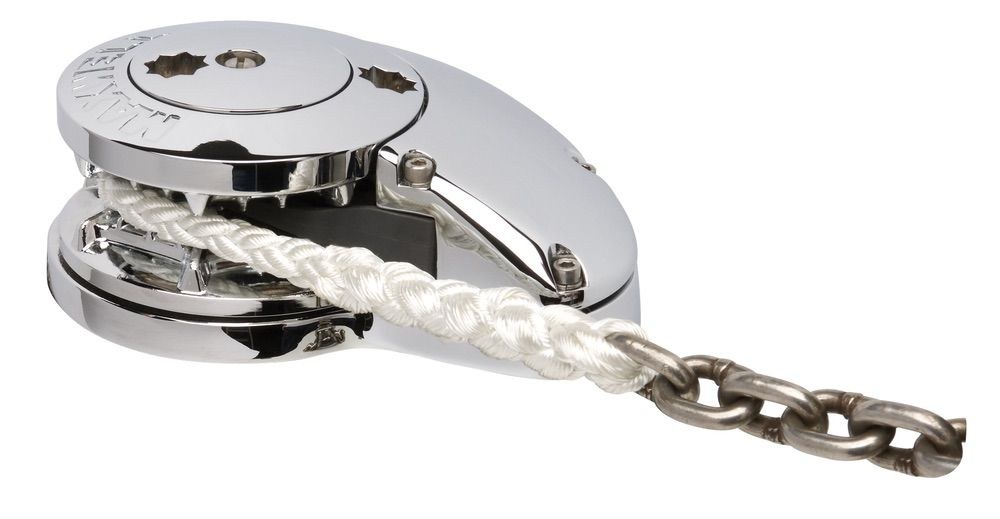

Maxwell Windlass, RC10 Series, Vertical Mount, 1540 Pounds Maximum Pull, 3300 Pounds Load Limit – RC10824V
$1,934.56
Maxwell Windlass, RC10 Series, Vertical Mount – RC10824V
Description
Windlass; RC10 Series; Vertical Mount; 1540 Pounds Maximum Pull; 3300 Pounds Load Limit; 79 Feet Per Minute Chain Speed/ 65 Feet Per Minute Rope Speed; 16-3/4 Inch Width; 316 Stainless Steel; 24 Volt DC; 5/16 Inch Chain And 9/16 To 5/18 Inch Rope Size; With Top Works/ Gearbox/ 1000 Watt Motor/ Dual Direction Solenoid/ Crank Handle/ Allen Key
Attributes:
- Mount Type: Vertical
- Maximum Pull: 1540 Pound
- Working Load Limit: 3300 Pound
- Maximum Line Speed: 79 Feet Per Minute Chain/ 65 Feet Per Minute Rope
- Size: 16-3/4 Inch Width
- Chain/ Rope Size: 5/16 Inch Chain And 9/16 To 5/18 Inch Rope
- Material: 316 Stainless Steel
- Voltage Rating: 24 Volt DC
- Motor Power: 1000 Watt
Features & Benefits:
- Gearbox Can Be Removed By Hand And Without Tools For Easy Maintenance And Inspection
- Full Disassembly Capability Of The Top Works Utilizing Only The Handle Provided And An Allen Key
- Manual Override And ‘Free Fall’, Using The Emergency Crank And Clutch Handle Provided
- Sealed Oil Bath And Marine-Grade Hard Anodized, Alloy Gearbox Provides Maximum Output Via A Precision Worm And Worm Wheel
- Every Maxwell RC10 Automatic Rope/Chain Windlass Comes With Top Works, Motor And Gear Box And Dual Direction Solenoid
- Unique Spacer Tube Design Allows For Installation Through Virtually Any Deck Thickness, And The Multiple Mounting Positions
- Limited 3 Year Warranty
About Product:
The stainless steel (AISI 316) RC10 Series rope/chain windlass is part of Maxwell’s upper mid-range line-up and is suitable for boats ranging from 9 Meter (30 Feet) to 14 Meter (48 Feet). The RC10 is a second-generation rope/chain windlass and is a favorite choice for cruising yachts, launches and pilothouse vessels, and light commercial operators. The intentionally simple design yields excellent longevity and performance figures and has contributed to a well-earned reputation for reliability. The RC10 comes in two variants, the RC10-8 and the RC10-10 and is capable of handling 8 to 10 Millimeter (5/16 Inch to 3/8 Inch) chain and 14 to 16 Millimeter (9/16 Inch to 5/8Inch) 8-brait (plait) rope. The patented Wave Design™ rope/chain gypsy (chainwheel) is able to accommodate a wide range of chain pitch differences (both imperial and metric) within the RC10’s specified chain size diameters.
Additional information
| Weight | 55.11 lbs |
|---|---|
| Dimensions | 18.9 × 17 × 11.9 in |
| Brand | MAXWELL |
| Manufacturer Part Number | RC10824V |
