Name: Maxwell Windlass, RC8 Series, Vertical Mount, 770 Pounds Maximum Pull, 2640 Pounds Load Limit - RC8612V
Brand: MAXWELL
SKU: KYS-MXWRC8612V
Price: 1619.09 USD
Availability: InStock

Description

Windlass; RC8 Series; Vertical Mount; 770 Pounds Maximum Pull; 2640 Pounds Load Limit; 92 Feet Per Minute Chain Speed/ 79 Feet Per Minute Rope Speed; 15 Inch Width; 316 Stainless Steel; 12 Volt DC; 1/4 Inch Chain And 1/8 Inch Rope Size; With Top Works/ Gearbox/ 600 Watt Motor/ Dual Direction Solenoid/ Crank Handle/ Allen Key

Attributes:

Mount Type: Vertical
Maximum Pull: 770 Pound
Working Load Limit: 2640 Pound
Maximum Line Speed: 92 Feet Per Minute Chain/ 79 Feet Per Minute Rope
Size: 15 Inch Width
Chain/ Rope Size: 1/4 Inch Chain And 1/8 Inch Rope
Material: 316 Stainless Steel
Voltage Rating: 12 Volt DC
Motor Power: 600 Watt

Features & Benefits:

Gearbox Can Be Removed By Hand And Without Tools For Easy Maintenance And Inspection
Full Disassembly Capability Of The Top Works Utilizing Only The Handle Provided And An Allen Key
Manual Override And ‘Free Fall’, Using The Emergency Crank And Clutch Handle Provided
Sealed Oil Bath And Marine-Grade Hard Anodized, Alloy Gearbox Provides Maximum Output Via A Precision Worm And Worm Wheel

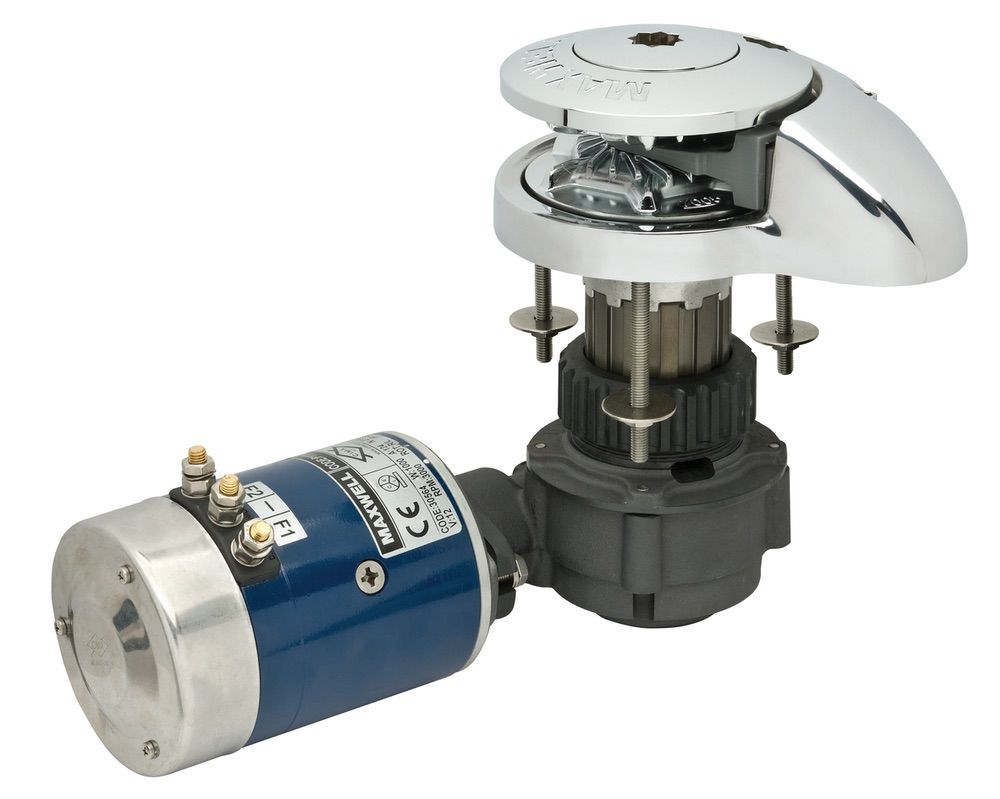

Every Maxwell RC8 Automatic Rope/Chain Windlass Comes With Top Works, Motor/Gear Box And Dual Direction Solenoid

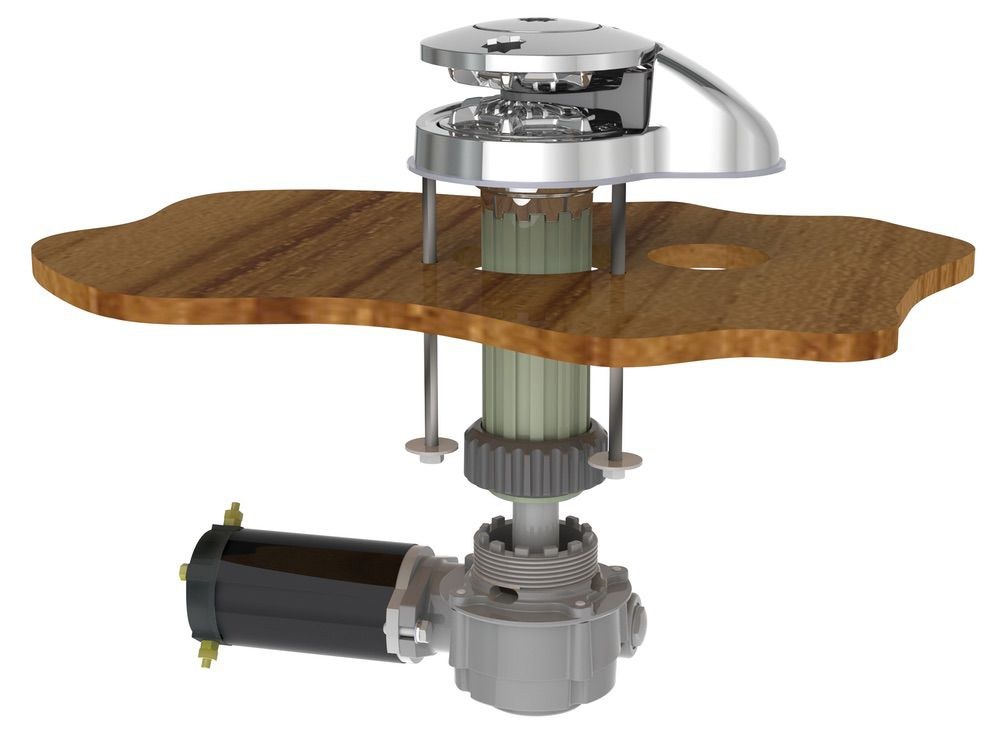

Unique Spacer Tube Design Allows For Installation Through Virtually Any Deck Thickness, And The Multiple Mounting Positions
Limited 3 Year Warranty

About Product:

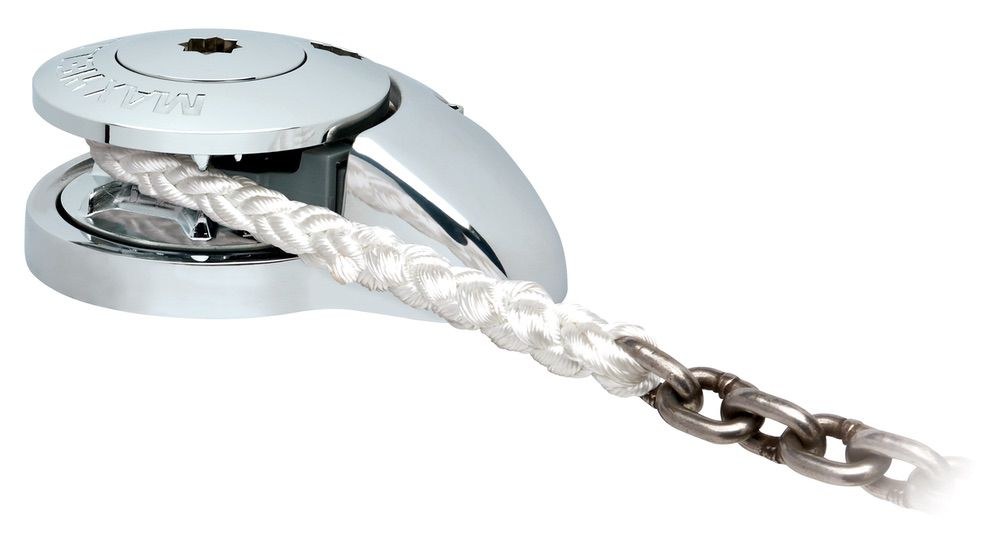

The RC8 rope/chain windlass is the product of over 30 years of engineering refinements and is the third generation of Maxwell windlass in this size with some of the best performance and longevity figures on the market. The tried a true RC8 can be used with 8 Millimeter (5/16 Inch) chain spliced to 14 Millimeter 8-plait nylon rope. The patented Wave Design™ rope/chain gypsy (chainwheel) is able to accommodate a wide range of chain pitch differences (both imperial and metric) within the RC8’s specified chain size diameters.
