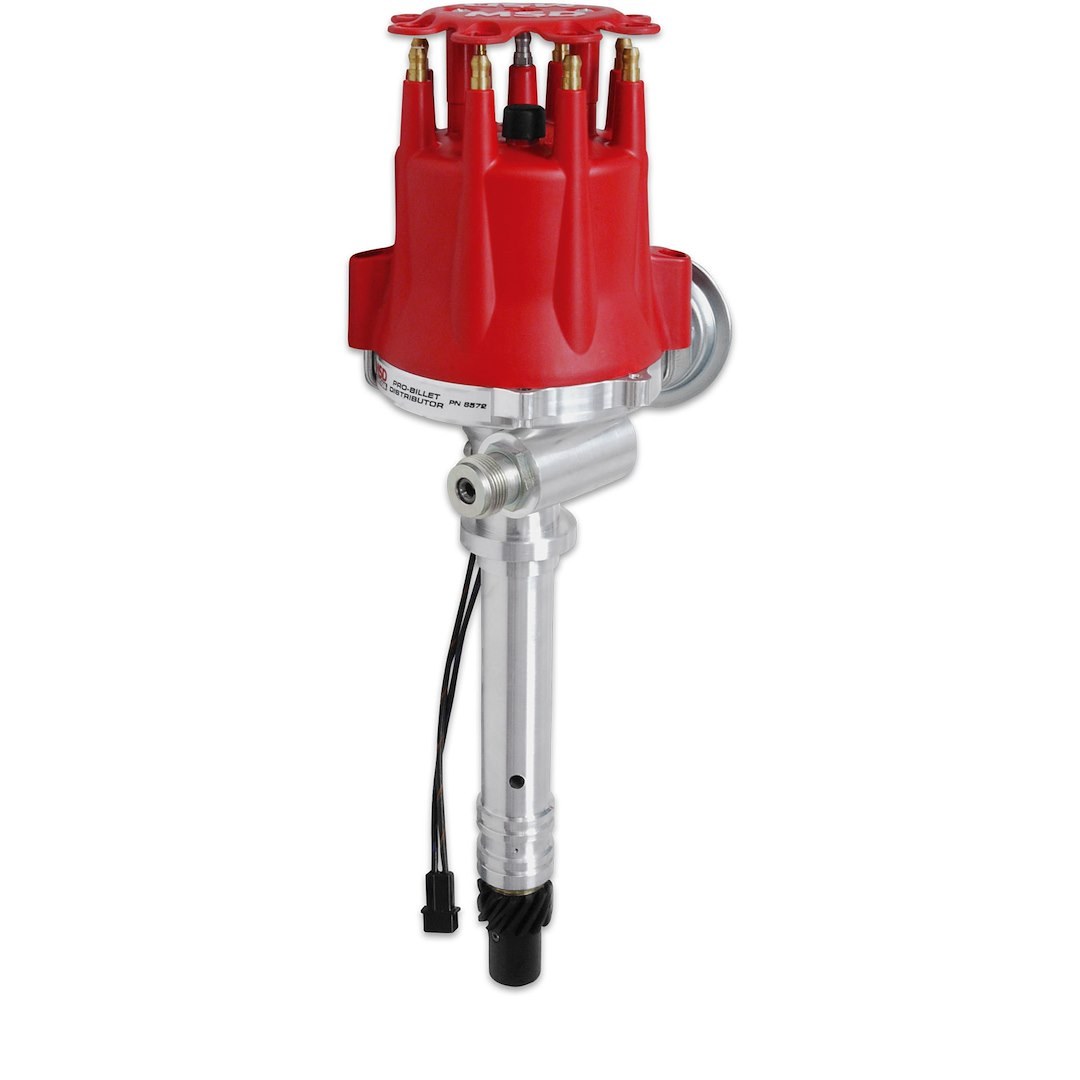

MSD Ignition Distributor, Pro-Billet, For Use with 1963-1974 Corvettes, Without Ignition Control Module, Magnetic Trigger – 8572
$736.70
MSD Ignition Distributor, Pro-Billet, For Use with 1963-1974 Corvettes – 8572
Description
Distributor; Pro-Billet; For Use With 1963-1974 Corvettes; Without Ignition Control Module; Magnetic Trigger; Vacuum and Mechanical Advance; With Iron Gear; Red Cap With HEI/Male Posts; With Mechanical Tachometer Drive
Attributes:
- Condition: New
- Finish: Natural
- Recommended Use: Street
- Spark Advance Type: Vacuum And Mechanical Advance
- Spark Distribution Type: Magnetic Trigger
- Drive Gear Type: Iron Gear
- With Ignition Module: No
- With Tach Drive: Yes
- Includes Cap And Rotor: Yes
- Cap Color: Red
- Cap Type: HEI/ Male Posts
- Coil In Cap: No
Features & Benefits:
- CNC Machined Billet Aluminum Housing Is 3/8 Inch Smaller In Diameter And 7/8 Inch Shorter Than Conventional Chevy V-8 Distributors With The “Points” Type Cap
- Maintenance Free Magnetic Pickup And Precision Reluctor Create Stable Trigger Signals Throughout The RPM Range
- Easy To Adjust Mechanical Advance With Supplied Springs And Stop Bushings
- Polished Steel Shaft Is QPQ Coated And Guided By A Sealed Ball Bearing, Advance Plate And Weights Are Fine Blanked From Chrome Moly Steel And QPQ Coated For Friction Reduction
- Advance Weight Pins Are Staked And TIG Welded To The Plate, Nylon Pads Ensure Smooth Operation Of The Advance Weights
- Mechanical Advance Assembly Can Be Locked Out For Crank Trigger Systems
- Special Oil Tract Improves Lubrication To The Distributor And Cam Gear, O-Ring Seals Can Be Added To Modified Blocks To Improve Oil Pressure Control
- Limited 1 Year Warranty
About Product:
Corvette owners can now replace their worn out Magna-Pulse distributors with this precision Pro-Billet tach drive distributor. Advantages such as an accurate magnetic pickup, oversized shaft, vacuum advance and a billet aluminum housing are just a few of the MSD advantages. Inside the billet housing, a sealed ball bearing and long sintered bushing guide a 0.500 Inch steel shaft for high RPM accuracy. A special reluctor is mounted to this shaft and is responsible for triggering the magnetic pickup. An adjustable mechanical advance assembly allows you to get the most performance out of your Vette engine by custom tailoring a timing curve to fit your application.
Additional information
| Weight | 7 lbs |
|---|---|
| Dimensions | 17.65 × 6.77 × 6.76 in |
| Brand | MSD CO. |
| Manufacturer Part Number | 8572 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 44 vehicles.
