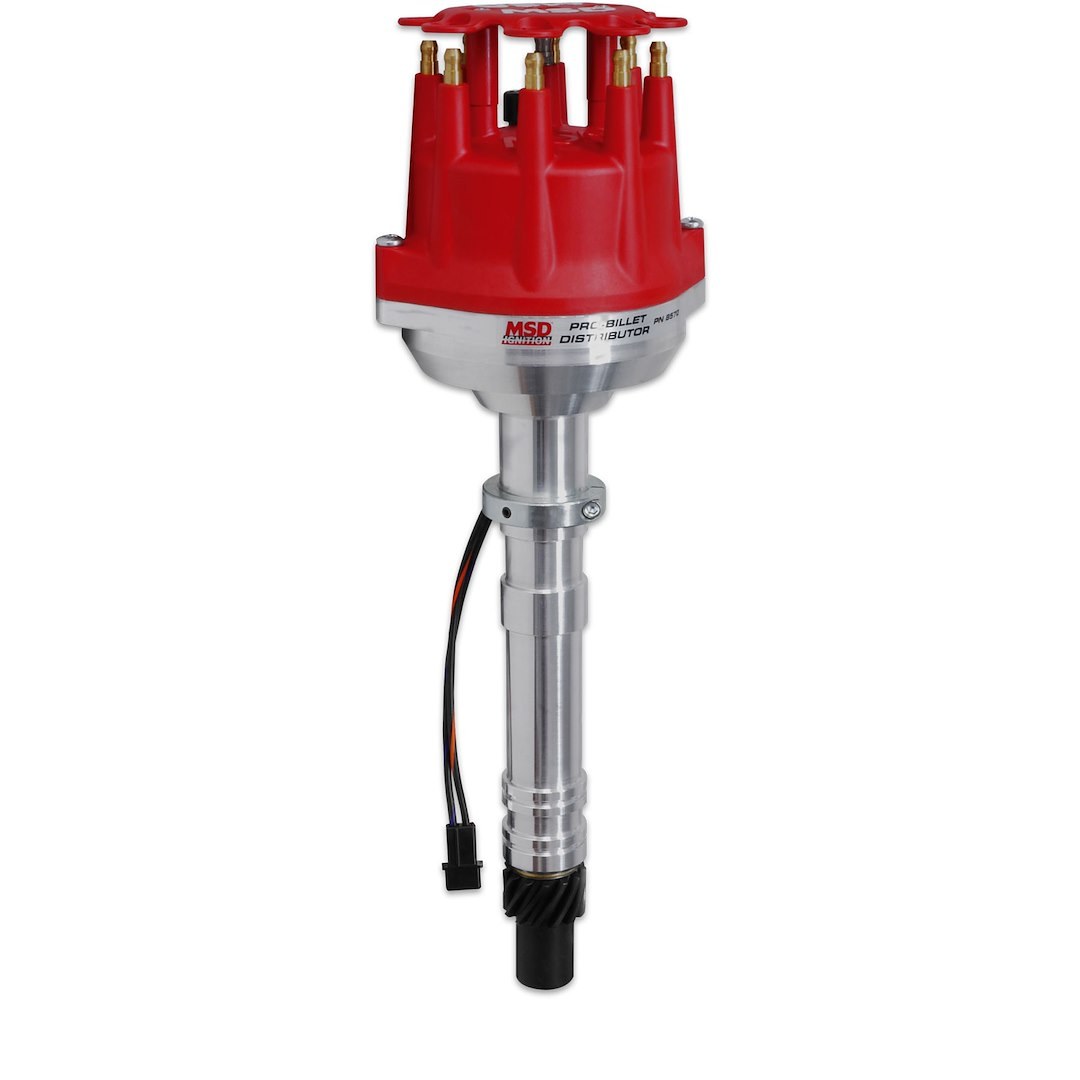

Name: MSD Ignition Distributor, Pro-Billet, For Use with Chevy V8 Engines, Small Diameter, Without Ignition Control Module, Magnetic Trigger - 8570
Brand: MSD CO.
SKU: KYS-M468570
Price: 542.90 USD
Availability: InStock

Description

Distributor; Pro-Billet; For Use With Chevy V8 Engines; Small Diameter; Without Ignition Control Module; Magnetic Trigger; Mechanical Advance; With Iron Gear; Red Cap With HEI/Male Posts

Attributes:

Condition: New
Finish: Polished Shaft
Recommended Use: Street/ Strip
Spark Advance Type: Mechanical Advance
Spark Distribution Type: Magnetic Trigger
Drive Gear Type: Iron Gear
With Ignition Module: No
With Tach Drive: No
Includes Cap And Rotor: Yes
Cap Color: Red
Cap Type: HEI/ Male Posts
Coil In Cap: No

Features & Benefits:

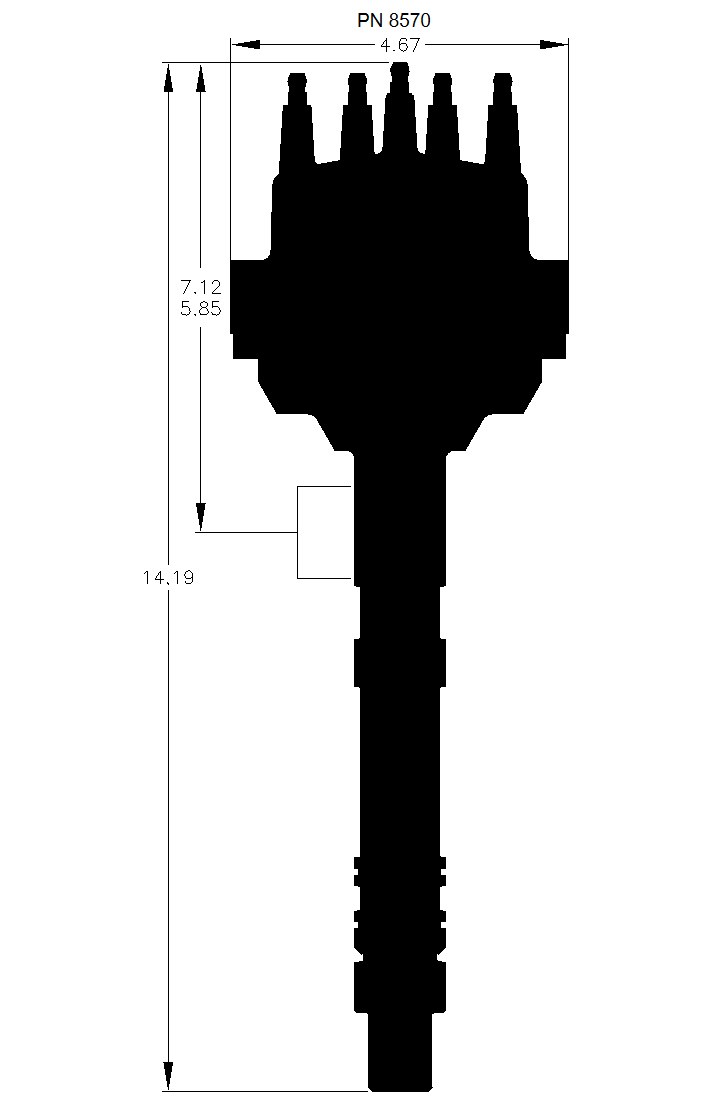

CNC Machined Billet Aluminum Housing Is 3/8 Inch Smaller In Diameter And 7/8 Inch Shorter Than Conventional Chevy V-8 Distributors With The “Points” Type Cap
Maintenance Free Magnetic Pickup And Precision Reluctor Create Stable Trigger Signals Throughout The RPM Range
Easy To Adjust Mechanical Advance With Supplied Springs And Stop Bushings
Polished Steel Shaft Is QPQ Coated And Guided By A Sealed Ball Bearing, Advance Plate And Weights Are Fine Blanked From Chrome Moly Steel And QPQ Coated For Friction Reduction
Advance Weight Pins Are Staked And TIG Welded To The Plate, Nylon Pads Ensure Smooth Operation Of The Advance Weights
Mechanical Advance Assembly Can Be Locked Out For Crank Trigger Systems
Special Oil Tract Improves Lubrication To The Distributor And Cam Gear, O-Ring Seals Can Be Added To Modified Blocks To Improve Oil Pressure Control
Limited 1 Year Warranty

About Product:
This distributor was designed for racers and street rodders that have space limitations due to firewall interference, blowers or oversized intake manifolds such as tunnel rams. The distributor is 3/8 Inch narrower and almost 1 Inch shorter than a standard distributor. Proven performance features include a high output magnetic pickup and precision machined reluctor for accurate ignition triggering. A fully adjustable mechanical advance allows you to tailor the advance curve to your specific application. Topping it all off is our own small Diameter cap. This is molded out of durable Rynite® material and comes with an optional wire retainer.
