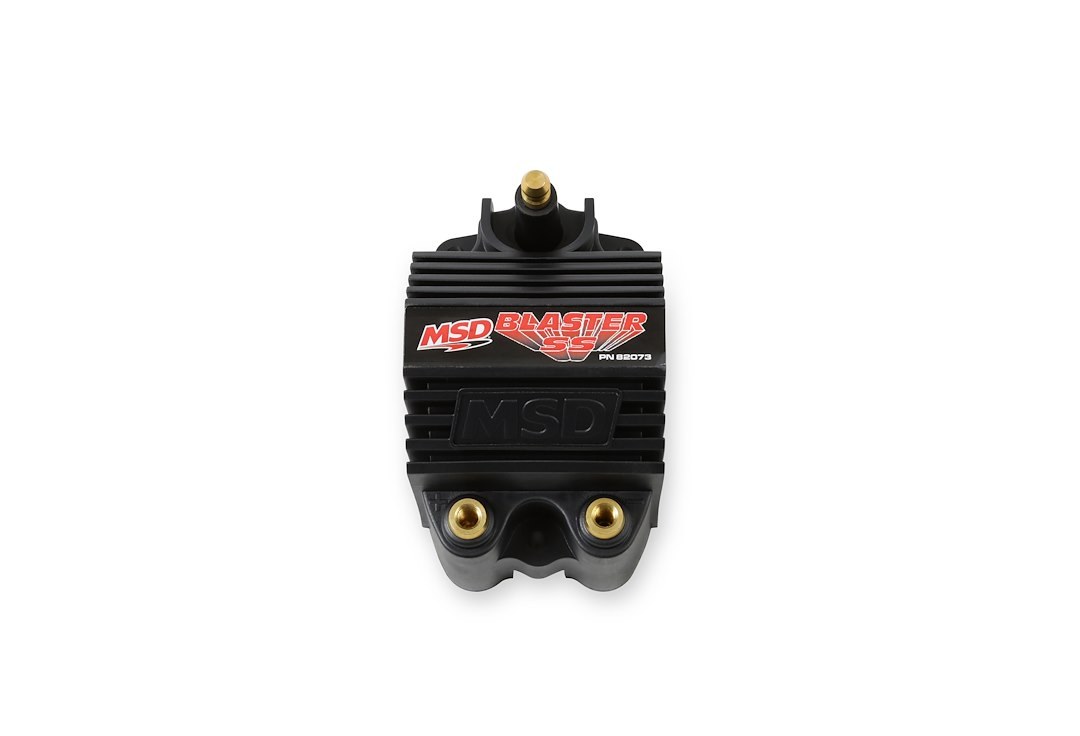

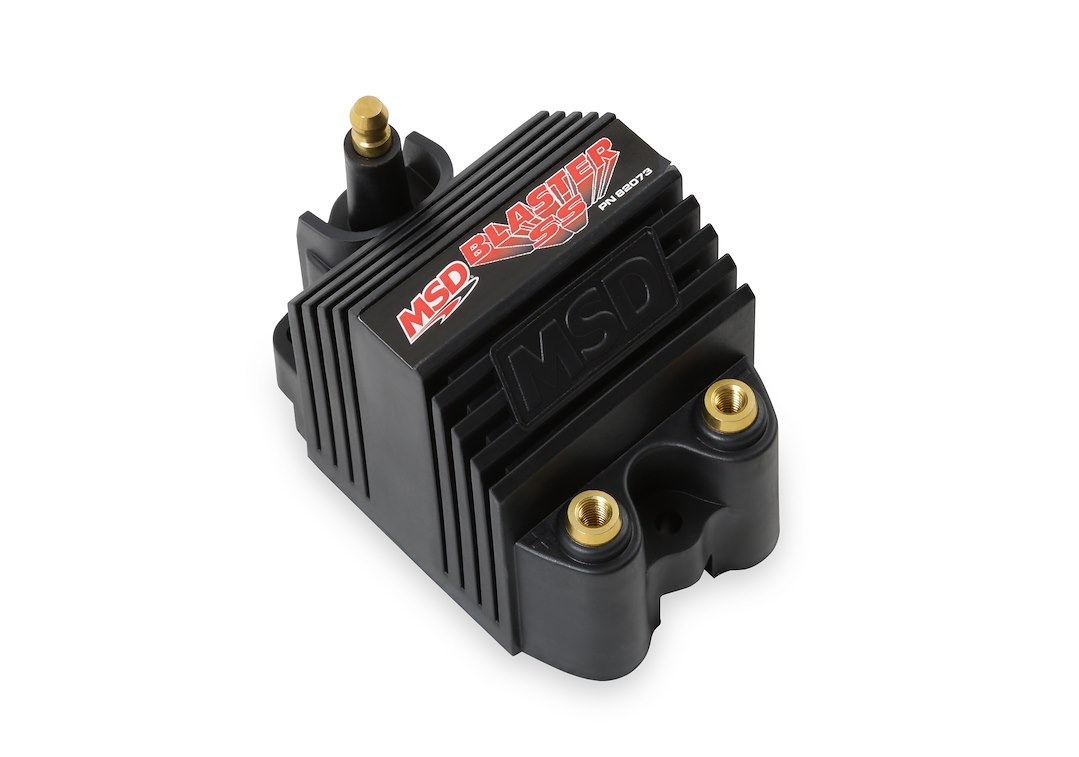

MSD Ignition Ignition Coil, Blaster SS, Single Tower Coil, 40000 Volts – 82073
$110.49
MSD Ignition Ignition Coil, Blaster SS, Single Tower Coil, 40000 Volts – 82073
Description
Ignition Coil; Blaster SS; Single Tower Coil; 40000 Volts; 0.355 Ohms Primary Resistance/4.4K Secondary Resistance/70:1 Turns Ratio/6.9mH Inductance/300mA Peak Current/220uS Spark Duration; Effective Up To 12500 RPM; Black
Attributes:
- Recommended Use: Street
- Coil Style: 1 Tower
- Internal Construction: Epoxy Filled
- Maximum Voltage: 40000 Volt
- Coil Wire Attachment Type: Male/ HEI
- Color: Black
- Primary Resistance: 0.355 Ohms
- Secondary Resistance: 4.4 Kilo Ohms
- Diameter (IN): Not Applicable
- Height (IN): 2.65 Inch
- Includes Mounting Bracket: No
- Includes Coil Wire: No
- Includes Ballast Resistor: No
Features & Benefits:
- Improved Output Coil For Electronic Ignitions, And MSD Ignitions
- Efficient Winding Design And Assembly Creates A Compact Housing
- Primary And Secondary Windings Are Encased In Ciba Polyurethane
- 70:1 Turns Ratio And Lower Primary Resistance Produce High Voltage Output
- Dupont Rynite Housing With A Tall Tower And Brass Primary Terminals
- CARB E.O. Approved
- Limited 1 Year Warranty
About Product:

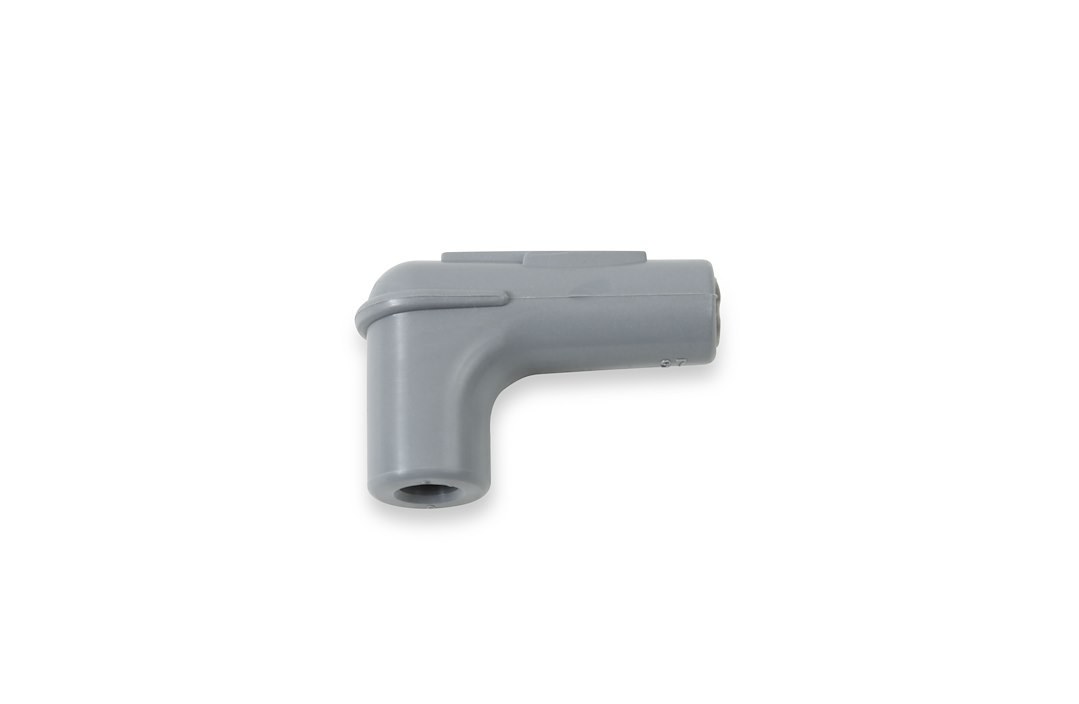

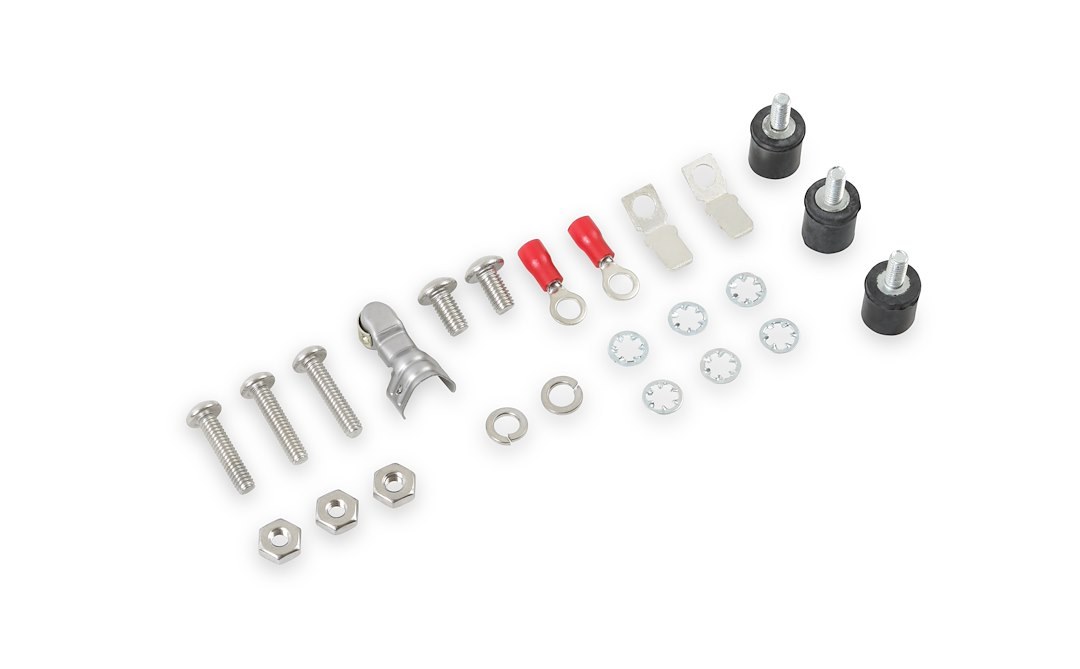

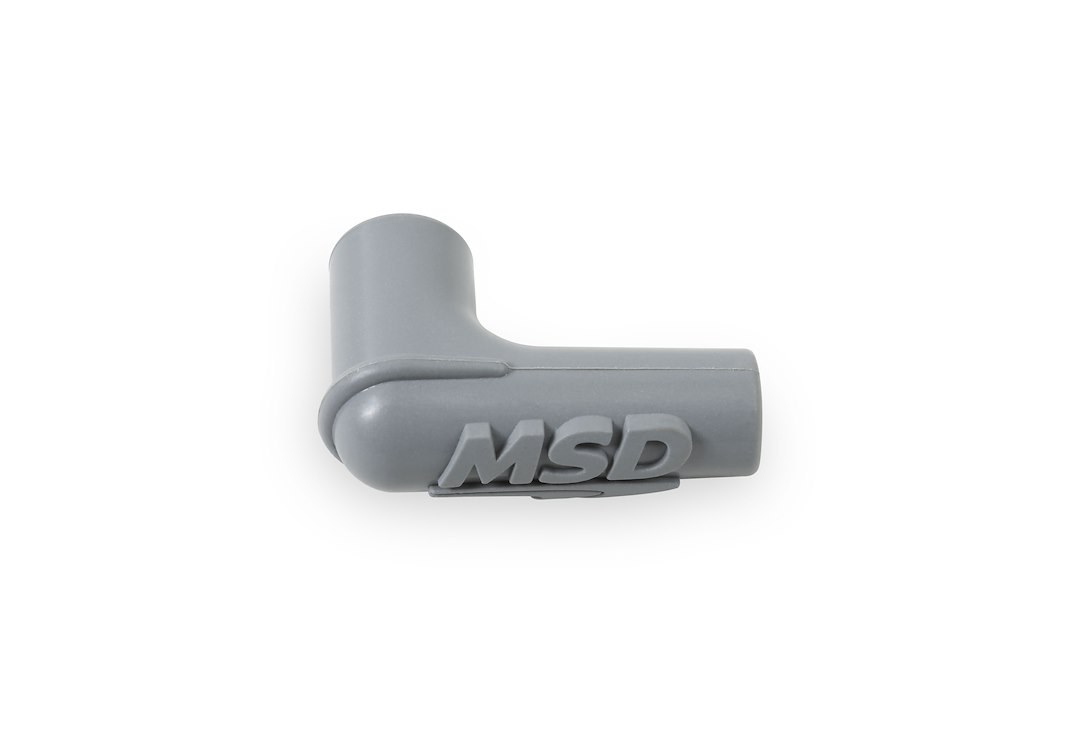

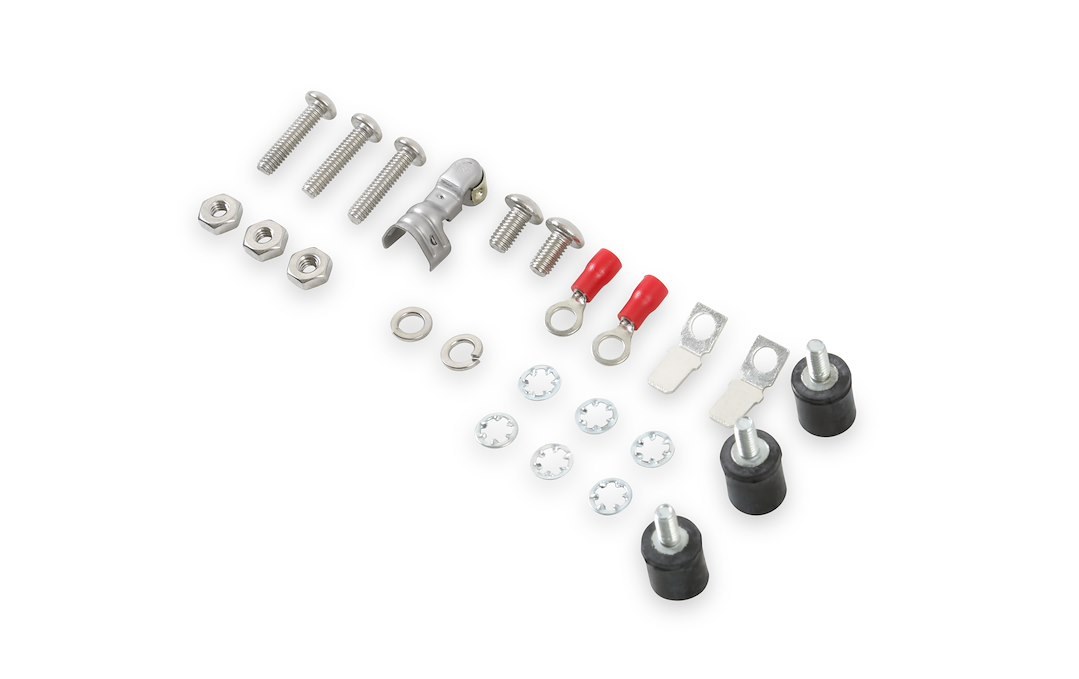

Don’t let the compact size of the Blaster SS Coil fool you, because it is packed with performance! The efficient E-core windings are designed to produce high amounts of current without sacrificing the voltage output. In fact, when used with an MSD 6 Series Ignition, the Blaster SS produces 300 Milliamps with a maximum Voltage output of 40,000 Volts. The secondary windings are wound on a segmented bobbin which reduces the chance of voltage breakdown between the primary and secondary windings. For more protection, these windings are encased in a polyurethane compound for complete protection against vibration. The Blaster SS features brass terminals and a sturdy Rynite housing. It is supplied with a 90 Degree boot, terminal and vibration mounts. A great addition to CD Ignitions and some stock applications.
Additional information
| Weight | 1.34 lbs |
|---|---|
| Dimensions | 8 × 6.25 × 2.25 in |
| Brand | MSD CO. |
| Manufacturer Part Number | 82073 |
